Why Choose Commercial Reverse Osmosis RO System Making Drinking Water?
A Commercial Reverse Osmosis RO System is a machine that purifies water by pushing it through a special membrane. The membrane blocks salts, minerals, and most impurities, allowing only clean water to pass.
It produces large amounts of purified water and can treat tap water, well water, brackish water, or seawater. Because it removes up to 99% of contaminants, it is widely used in businesses, factories, hotels, and drinking water projects.
Commercial RO system can treat many types of raw water
A commercial RO system can treat many types of raw water, including:
-
Tap water
-
Well water / underground water
-
Brackish water (high salt)
-
Seawater (with SWRO design)
-
River and lake water (after basic pretreatment)
Capacity Range
Commercial RO systems can produce:
-
500 L/h – 100,000 L/h（0.5 m³/h – 100 m³/h）
Custom sizes are available based on project needs.
TDS Range It Can Handle
Different models handle different TDS levels:
-
Tap water RO: TDS ＜ 1000 ppm
-
Brackish water RO (BWRO): TDS 2,000–19,000 ppm
-
Seawater RO (SWRO): TDS up to 35,000–45,000 ppm
RO membranes can remove up to 99% of TDS.

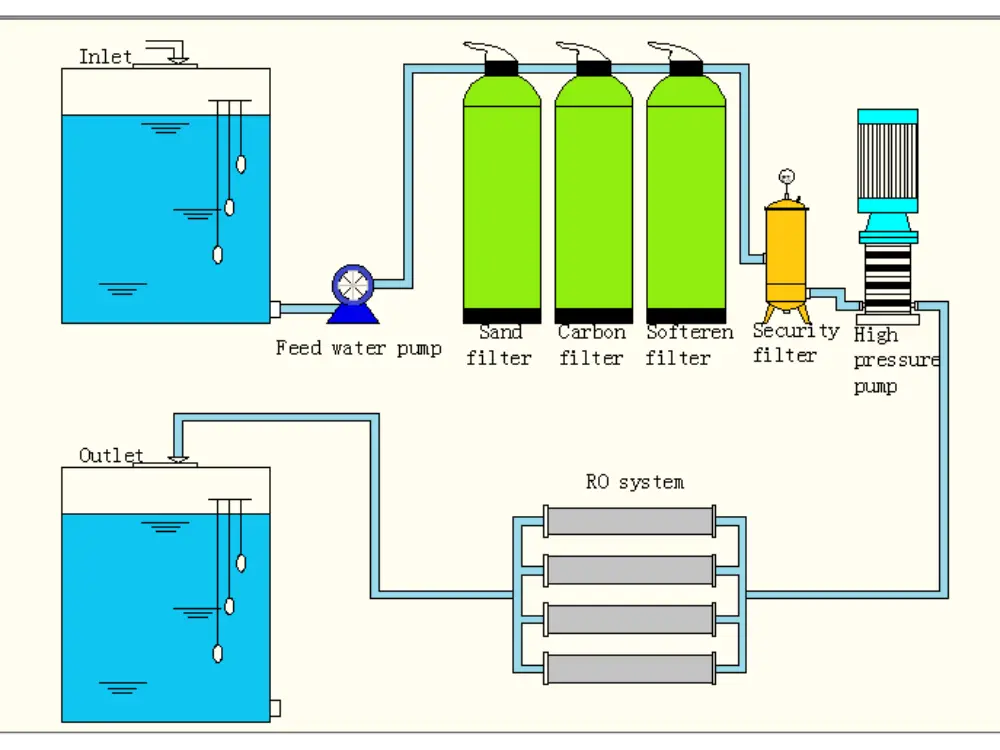

Commercial Reverse Osmosis System Process Flow
A commercial RO system usually follows this basic process:
Raw Water Pump
Lifts and delivers the source water into the system.
Pre-Filtration
Multimedia filter removes sediment and large particles.
Activated carbon filter reduces chlorine, odor, and organic matter.
Chemical Pretreatment (Optional)
Antiscalant dosing prevents scaling on the RO membrane.
Softener reduces hardness if needed.
Micron Cartridge Filter (5μm / 1μm)
Captures fine particles before the RO membrane.
High-Pressure Pump
Provides the necessary pressure for RO separation.
RO Membrane System
The membrane removes salts, minerals, heavy metals, and impurities.
Produces permeate water and concentrate water.
Post-Treatment(Optional)
UV sterilizer
Ozone
Mineralization / pH adjustment
Pure Water Storage Tank
Stores the treated water for distribution.
Control System
Automatic monitoring of TDS, flow, pressure, and safety protection.
Advantages of Commercial Reverse Osmosis (RO) System
Haiyuan commercial RO systems effectively remove unwanted dissolved solids from various water sources, including tap water, brackish water, boreholes, and wells, using highly efficient reverse osmosis membranes. This results in less wastewater, lower energy consumption, high flow rates, and excellent contaminant rejection at competitive prices, making Haiyuan systems widely used in the water treatment industry.
-
Compact and Durable Design
Haiyuan RO systems feature a stainless steel frame, making them strong, long-lasting, and suitable for various installation environments. -
High-Quality Membranes
They use membranes from reputable brands such as DOW and Toray, ensuring stable performance and minimal membrane fouling. -
Reliable Performance
Long-lasting operation with rigorous quality control tests guarantees consistent water output and reduced scaling deposits. -
Energy and Cost Efficiency
The systems are designed to be cost-effective and energy-efficient, lowering operating costs while maintaining high water production. -
Enhanced Water Quality
Haiyuan RO systems produce safe, clean, and tasty water suitable for drinking, commercial, and industrial applications.
How to Choose the Right Commercial RO Reverse Osmosis System？
1. Water Source and Quality
Check your water type—tap, well, brackish, or seawater—and its TDS and hardness to select the right system.
2. Required Capacity
Choose a system that meets your daily or hourly water needs for stable operation.(500L/hr to 50m3/hr)
3.Power Supply Details
Provide site power specifications, e.g., 110V, 220V, 380V, 415V, 460V; 50 or 60 Hz; single-phase or three-phase.
4. Water Quality Requirements
The purpose of the produced water, Make sure the RO system can achieve the purity level you need.
5. Installation Space
Consider space availability; compact or containerized designs save room.
6. Customization Options
Optional features like UV, ozone, or mineralization can enhance water quality.
FAQs for Commercial RO System
1. How long does an RO membrane last?
With proper maintenance and pretreatment, RO membranes typically last 2–5 years, depending on water quality and usage.
2. Can the system run 24/7?
Yes, commercial RO systems are designed for continuous operation, but regular monitoring and maintenance are recommended for optimal performance.
3. What is the electricity consumption?
Electricity usage depends on the system size and feed water type, but modern RO systems are designed to be energy-efficient.
4. Can RO treat brackish water?
Yes, brackish water RO (BWRO) systems can remove salts and impurities from water with TDS up to 15,000 ppm.
5. What is the lifespan of the machine?
With proper care and routine maintenance, a commercial RO system can last more than 10 years or longer.
Applications of Commercial RO System
Commercial RO systems are ideal for bottled water plants, hotels, and restaurants, providing clean and safe drinking water.
They are widely used in industries such as food and beverage, pharmaceuticals, electronics, and chemical manufacturing for high-quality process water.
RO systems support agriculture and irrigation, delivering water with controlled salinity to improve crop yield.
They are also suitable for schools, hospitals, sports complexes, and community water supply, ensuring safe water for daily use.
Customizable Options for Commercial Reverse Osmosis System
-
Capacity: 500 L/h – 100 m³/h (or more based on requirements)
-
Water Source: Tap, well, borehole, brackish, or seawater
-
TDS Handling Range: Low to high TDS water
-
Pretreatment Options: Multimedia filter, activated carbon, water softener, antiscalant dosing
-
Post-Treatment Options: UV sterilization, ozone, mineralization, pH adjustment
-
Membrane Brands: DOW, Toray, Hydranautics, etc.
-
Frame & Material: Stainless steel or carbon steel, compact or containerized design
-
Control System: Manual or automatic with monitoring of flow, pressure, and TDS
-
Additional Features: Energy recovery, low-pressure design, customizable panel layout
Choosing the right commercial reverse osmosis RO system transforms any water source into clean, safe, and reliable water. With flexible configurations, durable components, and energy-conscious design, these systems are built to meet the demands of modern businesses and communities. Investing in a well-designed RO system means consistent water quality, simplified maintenance, and a long-term solution you can trust.
