Container ro water treatment system for veolia 6m3PH
What is container ro water treatment system?
A container RO water treatment plant is a portable water factory packed inside a standard shipping container (like 20-foot or 40-foot sizes). It has everything needed to clean seawater or salty water into safe drinking water. You can move it anywhere by truck, ship, or plane, set it up quickly, and start using it right away—perfect for remote villages, disaster zones, or places with no clean water. No need to build a permanent plant!
Container ro water treatment system can easyly move it where you have to use. So system is compact and you just need to make inlet and outlet water connection. So that when your project is finished, you can move the system to another required project.
Container ro introduction:
As for the case background of this container ro system, the customer is from Australia and needs a container ro water treatment system to produce boiler water.
The raw water provided by the customer is well water with a TDS of 2800ppm.
Our company has in-depth communication with the customer and specifies professional production plans and accessories to meet the customer’s requirements.
In this way, the treated water output reaches 6m3ph and the TDS is 31.6ppm, which meets the customer’s water use standards.
The customer is very satisfied with the equipment and our company’s expertise and services, and is willing to maintain a long-term cooperative relationship with our company.
Container ro system process:
Feed water storage tank → Booster water pump → Sand filter →Antiscalant dosing system → Cartridge filter → High pressure pump → RO system (CIP) → Product water storage tank
(The water storage tanks should be provided by customer)
Container ro system detailed parameter table:
| HY-RO-6T/hr container reverse osmosis | |||
| Flow rate | 144T/day | Recovery rate | 60% |
| Applicable power | 380V/50hz 3 phase | Rated power | 9.9KW |
| Feedwater TDS | 2800ppm | freshwater TDS | 31.6ppm |
| high pressure | 17.3bar | operating temperature | 5-45℃ |
| Feedwater residual chlorine | <0.1ppm | Feedwater SDI | <5 |
| Feedwater turbidity | <1NTU | Feedwater PH value | / |
| RO membrane housing | 8040*3 core 2pcs | RO membrane | 6pcs |
| Variable-frequency Drive | For each pump | Container | 20FT |

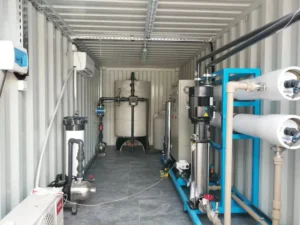

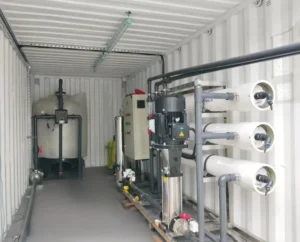

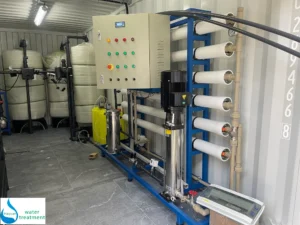

What does our container system include?

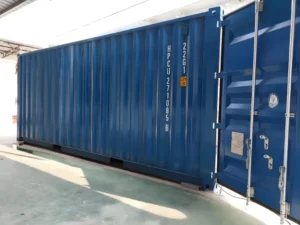

– New or second-hand (repaired, painted) container (solar powered system is optional)
– Water treatment system
– Control panel
– Lighting
– Interconnecting piping between components and systems
– Instrument wiring and wiring inside the container to the main control cabinet accordingly
– Non-slip floor covering
– Air conditioning (optional)
– Insulating whiteboard (optional)
– Ventilation fans
1.Tanks: Fiber glass or Stainless Steel 304/316
2. Pipes: U-PVC or stainless steel filter
3. Frame: Stainless Steel 304 or 316
4. Filter Housing: U-PVC or SS304 or SS316
5. Memrane Housing: FRP or SS304 or SS316
————————————————Different production capacity——————————
10m3ph container reverse osmosis system:
5m3ph container reverse osmosis system:

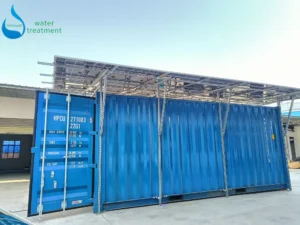

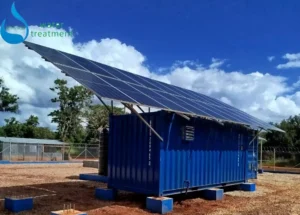

3m3ph Solar container water treatment plant:(solar system is optional)
a . Continuously water purifing , without generation , lower labor intensity .
b . 97%-99% desalination with original import reverse osmosis membrane ,
c . 98% organic mater and bacteria wiped off , over 98 heat source ,
d . Online conductivity monitoring , ensure good effluent .
e . PLC microcomputer monitoring , timing flush reverse osmosis membrane to ensure high quality purified water
——————————————————————————————————————————
Containerized water treatment system advantages：
1.Easy to Move
Container design for quick transport to any location needed.
2.Quick Setup
Plug-and-play – just connect power and water to start.
3.All-in-One Unit
Integrated systems for easy operation and expansion.
4.Works Anywhere
Handles tough environments and polluted water.
5.Saves Money
Cheaper to install and run than fixed systems.
6.Automated
Self-monitoring for easy, consistent performanceVideo
| All the source water quality is not always the same. This is a short comparison between samples: | ||
| Item | source water(Saltness) | Simple TDS range |
| 1 | Tap water: 0.1-7mg/l | TDS range: 100ppm to 700ppm |
| 2 | Brackish water:0,7 to 10 g/l | TDS range: 700ppm to 10000ppm |
| 3 | Northern Sea close to estuaries :21 g/l | TDS range: 10000ppm to 21000ppm |
| 4 | Atlantic Ocean :35 g/l | TDS 35000ppm |
| 5 | Mediterranean Sea :38 g/l | TDS 38000ppm |
| 5 | Arabian Sea :45 g/l | TDS45000ppm |
| 6 | Red sea: 41g/L | TDS 41000ppm |
| 7 | Dead Sea :300 g/l. | TDS 300,000ppm |
If you want to watch more product introductions, please click here to watch.
——————————————————————————————————————————
Container ro water treatment system inquiry guides：
To find the most suitable option for your use, please have the following information ready:
Product water flow rate (e.g., m³/hr, m³/day, L/hr, GPM, GPD, etc.)
Purpose of the product water (drinking, irrigation, industrial process, or others)
Feed water TDS (Total Dissolved Solids). Specify if it’s from a borehole, saltwater, brackish water, or lake water.
Power requirements (110V, 220V, 380V, 415V, 460V, 50 or 60 Hz), three-phase.
For borehole water, lake water, or seawater, a water analysis report is necessary.
If the source water is tap water, you don’t need to provide a TDS or water analysis report.
Haiyuan company can customzied flow rate from 1000L/hr to 50m3/hr for you.
Customized system, please send us inquiry.
Quickly discuss and reply you. My whatsapp +86 18825874379, Email: haiyuan@swroplant.com
