Containerized water treatment reverse osmosis plant –Argentina

Containerized water treatment plant introduction：

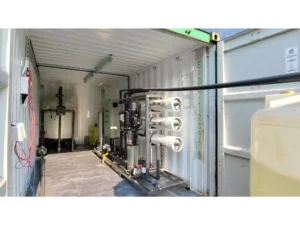

This is a containerized reverse osmosis water treatment facility, known for its strong water output capacity of 10m³ph. Our valued client, based in Argentina, posed a distinct set of challenges and expectations that we were enthusiastic to tackle.

Through persistent efforts and a dedication to excellence, we have not only entirely fulfilled the client’s requirements but have also exceeded them by reaching the highest benchmarks across all vital areas, including quality, design, and efficiency. This accomplishment serves as proof of our team’s skill and commitment to providing superior solutions.

—————————————————————————————————————————————————

Containerized ro plant process flow:

Raw water tank—raw water pump—multi-media filter—scale inhibitor—precision filter—high-pressure pump—RO—product water tank

Component	Simplified Function
Raw Water Tank	Stores seawater, regulates water volume, and precipitates impurities
Raw Water Pump	Increases pressure, ensures stable water flow, and provides power
Multimedia Filter	Removes impurities and reduces turbidity
Antiscalant Dosing System	Injects antiscalant to prevent scaling
Precision Filter	Removes fine particles and ensures water quality
High-Pressure Pump	Provides high pressure for the reverse osmosis process
Reverse Osmosis (RO) System	Removes salt, organic matter, bacteria, and other impurities through the membrane
Product Water Tank	Stores freshwater, regulates water volume, and prevents contamination

Source water and treated water parameter as below：

HY-RO-10T/hr container reverse osmosis
Flow rate	200T/day	Recovery rate	75%
Applicable power	380V/50hz 3 phase	Rated power	14KW
Feedwater TDS	1318ppm	freshwater TDS	16.4ppm
Working pressure	34.5bar	operating temperature	5-45℃
Feedwater residual chlorine	<0.1ppm	Feedwater SDI	<5
Feedwater turbidity	<1NTU	Feedwater PH value	7.86
RO membrane housing	8040*3 core,3pieces	RO membrane	9 pieces
Variable-frequency Drive	For each pump	Container	20FT

————————————————————————————————————————————————

Video Introduction：

To watch more videos of our products, please click here!

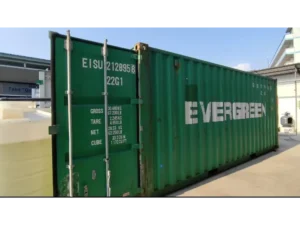

What is containerized RO water treatment plant ?

containerized water treatment plant becomes popular. Because you can easyly move it where you have to use. So system is compact and you just need to make inlet and outlet water connection. So that when your project is finished, you can move the system to another required project.

Trustworthy Haiyuan water treatment company:

Haiyuan, a global B2B water treatment provider with 20+ years of experience, has designed and installed over 10,000 systems worldwide. We offer mobile, trailer-mounted, and containerized purification solutions tailored for commercial and industrial use of all sizes.

Source water: direct seawater or drill salt water,river water

Purpose: For drinking water, irrigation or other Emergency water processes purpose.

We are also good at produce the solar powered water treatment system,please click here!

————————————————————————————————————————————————

Containerized water treatment ro plant inquiry guides,Looking forward to your inquiry：

To find the most suitable option for your use, please have the following information ready:

Product water flow rate (e.g., m³/hr, m³/day, L/hr, GPM, GPD, etc.)
Purpose of the product water (drinking, irrigation, industrial process, or others)
Feed water TDS (Total Dissolved Solids). Specify if it’s from a borehole, saltwater, brackish water, or lake water.
Power requirements (110V, 220V, 380V, 415V, 460V, 50 or 60 Hz), three-phase.
For borehole water, lake water, or seawater, a water analysis report is necessary.
If the source water is tap water, you don’t need to provide a TDS or water analysis report.
