Di Water System For Lab Water Deionizer

DI Water System for Laboratory – High-Purity Water Deionizer Solution

A di water system for lab is an essential piece of equipment for laboratories, providing ultra-pure water that meets stringent quality standards for scientific experiments, analysis, rinsing, and instrument operation. Designed with precision, our laboratory-grade DI water systems ensure consistent water purity through advanced ion exchange technology.

What is a DI Water System?

A DI Water System removes dissolved salts (ions) from feed water using ion exchange resins. These resins replace cations (such as calcium, magnesium, sodium) and anions (such as chloride, sulfate, nitrate) with hydrogen (H⁺) and hydroxide (OH⁻) ions, which combine to form pure H₂O. The result is deionized water with very low conductivity and minimal Total Dissolved Solids (TDS).

Feature	Description
High Purity Output	Produces Type II or Type I water (resistivity up to 18.2 MΩ·cm).
Modular Design	Easy to upgrade or replace resin cartridges.
Compact Footprint	Ideal for benchtop or under-sink installation in lab environments.
Pre-filtration Integration	Sediment, activated carbon, or RO can be included as pretreatment.
Resin Regeneration	Options for disposable or regenerable resin columns.
Digital Monitoring	Real-time resistivity/conductivity display for water quality assurance.

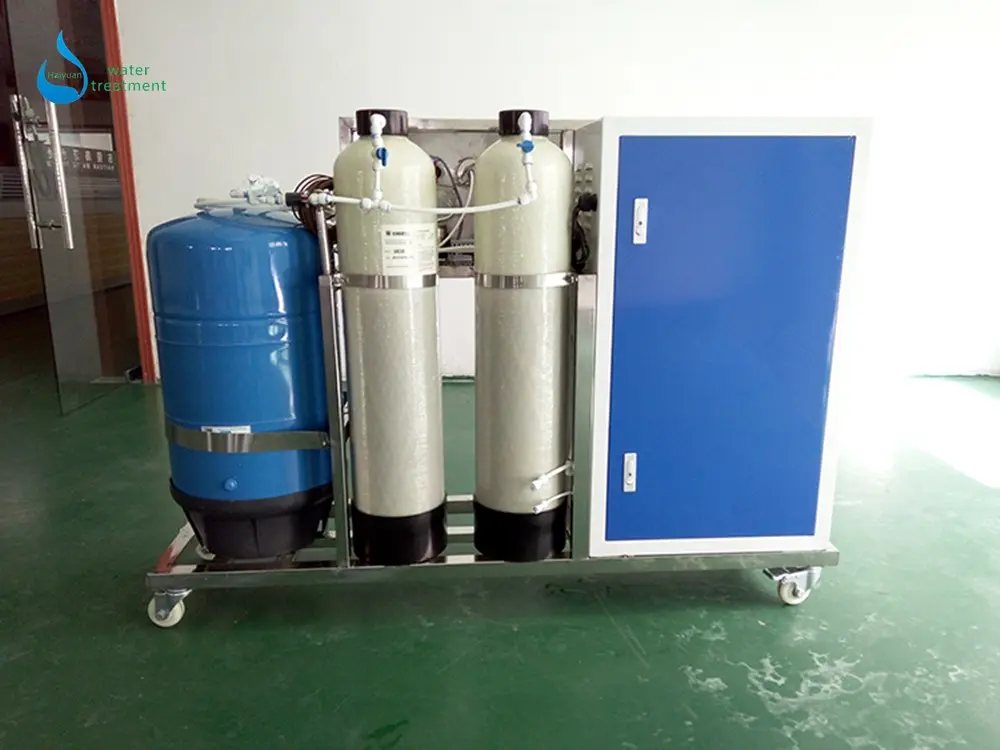

50L lab water deionizer

Water deionizer flow chart

Source tank →Feed water pump→20” 5μm filter→20” 1μm filter→20” carbon filter→High-pressure/Centrifugal pump→ Reverse osmosis equipment→Ultraviolet sterilizer→ Mixed bed → Pressure tank

Applications in Laboratory Settings

1.Chemical and Biological Experiments: Ensure accuracy and prevent contamination.

2.Clinical and Medical Laboratories: Sterile water for rinsing, preparing solutions, and operating analyzers.

3.Pharmaceutical & Biotech: Consistent high purity for reagent preparation.

4.Analytical Instruments: Protect sensitive equipment like HPLC, ICP-MS, GC from ion interference.

Deionized water machine DI series parameter:

DI Water System for Lab – Technical Specifications

Model	Water Capacity (L/h)	Output Resistivity	Rated Voltage	Rated Power	Equipment Size (cm)
DI-10C	10 L/h	10–15 MΩ·cm	220V AC	30W	54 × 37 × 93
DI-20C	20 L/h	10–15 MΩ·cm	220V AC	40W	54 × 37 × 93
DI-30C	30 L/h	10–15 MΩ·cm	220V AC	50W	54 × 37 × 93
DI-50C	50 L/h	10–15 MΩ·cm	220V AC	70W	60 × 40 × 120

Laboratory water deionizer Function

1). Full automatic self-washing,

2). Water quality on-line detection function, informed effluent water quality.

3). Multi-protection and two types of water connector, which could provide both level one water and level three water for labs.

4). Use the tap-water as the water supply and can use for various water quality.

5). Double wavelength UV sterilization system.

Why Choose Our DI Water System?

• Customizable Flow Rates (1L/min to 100L/hr)

• High Efficiency, Long Resin Life

• Plug-and-Play Installation

• CE/ISO Certified Components

• Factory Direct Supply and OEM/ODM Service

In order send you correct information please tell me below information

1. How many liters outlet water per hour do you require?(500L/H,1000L/H, etc.)

2. Where is the source water from? (Eg,well water/borehole water, river water. etc.)- Do you have water analysis result or know the water quality? (The TDS=total dissolved solid, Fe, Mg, Hardness etc. whether over proof etc).

3. After treated, The water meet WHO drinking water standard, or as per bottle water standard or other industrial purpose?

4. Your local power is 380V/50hz 3phase or 380V/60Hz 3 phase, 440/60hz 3 phase or other voltage?

BTW: If source water is municipal tap water or clean reservoir water or spring water no need report.

But please inform us the water characteristic.

Please Click here contact us!

Email: haiyuan@swroplant.com

Mob&WhatsApp&WhatChat: +8618825874379

Laboratory water deionizer based on different capacity and treated water standard or purpose. we will supply the Optimization solution for client.
