Industrial brackish water reverse osmosis system

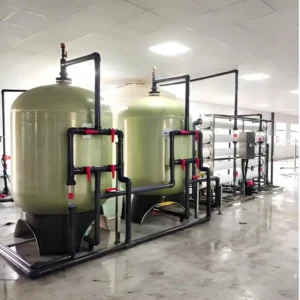

Industrial brackish water reverse osmosis system is used to remove salt and purify water. This system consists of booster pump, FRP/Carbon Steel pretreatment tanks (sand filter, activated carbon filter), cartridge filter housing, chemical dosing systems, high pressure pump, FRP membrane pressure vessel, 4040 or 8040 membranes, control panel and touch screen control.
Material and parts brand can be changes as regards to raw water quality and customer demand.
From touch screen panel, you can see all system flow diagram and automatic or manual control the system.
Membranes do not allow small particles, virus, bacteria to pass as a result your water becomes very clean and safe.
Industrial reverse osmosis capacity range between 2m3/hour to 200m3/hour.
| Please Attention | ||
| All the source water quality is not always the same. This is a short comparison between samples: | ||
| Item | source water(Saltness) | Simple TDS range |
| 1 | Tap water: 0.1-7mg/l | TDS range: 100ppm to 700ppm |
| 2 | Brackish water:0,7 to 10 g/l | TDS range: 700ppm to 10000ppm |
| 3 | Northern Sea close to estuaries :21 g/l | TDS range: 10000ppm to 21000ppm |
| 4 | Atlantic Ocean :35 g/l | TDS 35000ppm |
| 5 | Mediterranean Sea :38 g/l | TDS 38000ppm |
| 5 | Arabian Sea :45 g/l | TDS45000ppm |
| 6 | Red sea: 41g/L | TDS 41000ppm |
| 7 | Dead Sea :300 g/l. | TDS 300,000ppm |
Industrial Reverse Osmosis Process Flow:
Automatic chlorination device—raw water tank—boosting pump—multi-media filter—activated carbon filter—softening filter—scale prevention device—reduction dosing device—precision filter—high-pressure pump—RO—UV—product water tank
The main process flow needs to be designed according to customer needs and the quality of raw water.
Pretreatment is used to remove large number of suspended solids, iron, turbidity, unwanted color, unpleasant taste, chlorine, sediment, organic contaminants, odors. In pretreatment we can control the follow manual or automatic for Reverse Osmosis Seawater Purification Plant.
After pretreatment water goes to cartridge filter housing, we call it as security filter, most of application we are using FRP or PVC Plastic material for cartridge filter housing or Bag Filter Housing. There is 1µm or 5 µm PP filter in cartridge filter housing for Reverse Osmosis Seawater Purification System.
For industrial Reverse Osmosis System needs 380V/50Hz/60Hz or . For bigger capacity, because of high pressure pump, it needs 380V/415V 50/60Hz. As regards to your Industrial RO Desalination Machine design, we will check your electrical supply and decide fix power to you.
In order to better understand your needs and give you the best price, please provide the following information:
1. The feed water is from sea or borehole? Have water analysis report, such as TDS value?
2. After treated, the product water is for drinking or other usage?
3. How many liters per hour do you need for the product water?
4. Will use city power 380V 50HZ 3Phase?
Please contact us add WhatsApp +8618825874379 Email: haiyuan@swroplant.com
