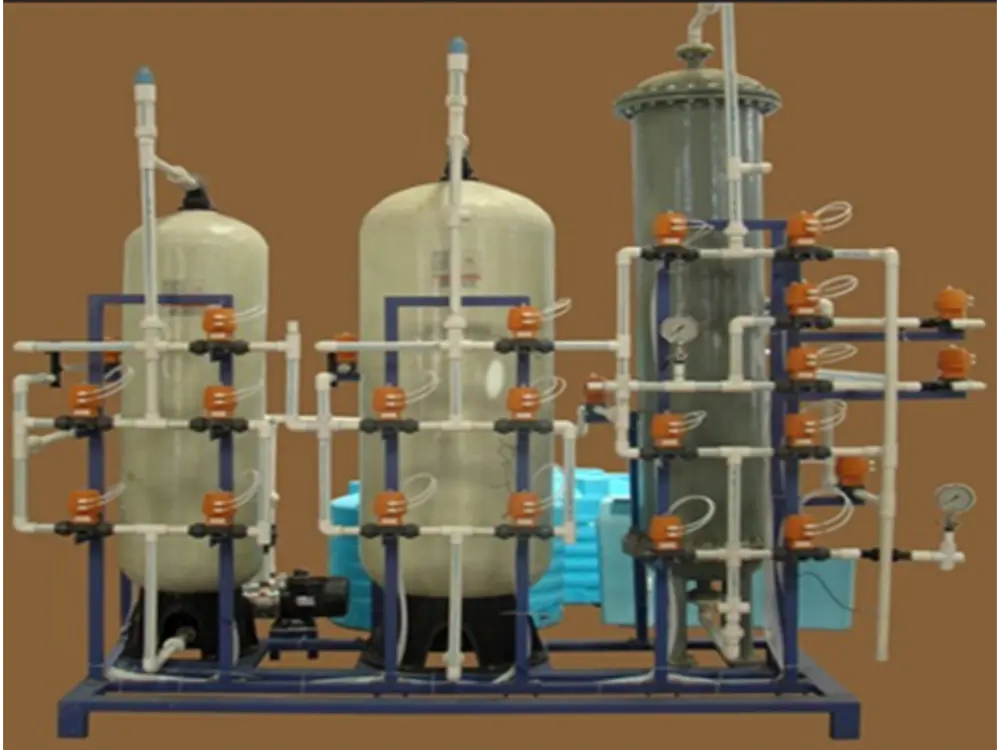

Ion Exchange Water Treatment System cation anion ion exchange bed
Haiyuan offers a reliable range of cation anion ion exchange beds designed to remove nearly all dissolved solids from water. Ion exchange water treatment system ensure efficient water purification by exchanging harmful ions with harmless ones through advanced ion exchange resins.
How the Ion Exchange System Works

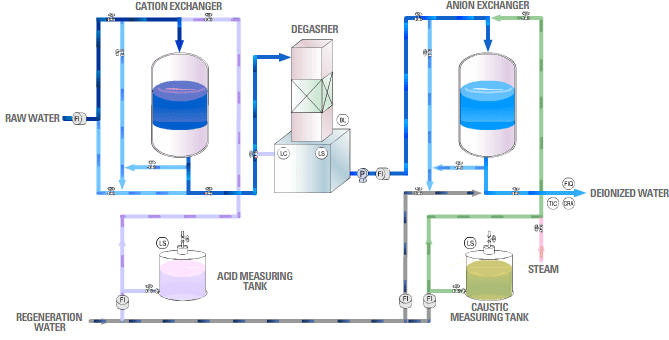

The system first directs filtered water through an acidic cation exchanger resin. Here, the resin captures cations and releases an equal number of hydrogen ions into the water. Next, the water flows into the anion exchanger, which removes anions by exchanging them with hydroxide ions. As a result, the system produces high-purity deionized water.
Two Optional Treatment Processes
A) Ion Exchange Process
Raw Water → Multimedia Filter → Activated Carbon Filter → Cation Exchange → Anion Exchange → Mixed-Bed Deionizer → Deionized Water
B) Reverse Osmosis + Mixed Bed
Raw Water → Multimedia Filter → Activated Carbon Filter → Reverse Osmosis → Mixed-Bed Deionizer
Features of Our Ion Exchange Water Treatment System
High-Performance Resin
We use high-quality resin with strong exchange capacity, low energy use, and long service life.
Reliable Control System
Equipped with top-grade imported valves for stable and safe performance.
Full Automation
The system delivers consistent water quality and allows flexible regeneration settings (7 or 12 days, adjustable within 24 hours).
User-Friendly Design
Compact structure for easy installation and simple operation.
Customized Solutions
We design each system based on your water source and purity needs.
Versatile Applications
Ideal for:
-
Industrial: steel, smelting, boilers, condensers, heat exchangers.
-
Commercial: hotels, restaurants, offices, apartments.
-
Other: food, beverage, wine, chemical, and pharmaceutical industries.
Buying Guides for ion exchange water treatment system
To find the most appropriate cation anion ion exchange water treatment system for your use, please ✉️contact us and have the following information ready!
-Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
-Product water purpose(industry process or others)
-Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
-Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
· It is necessary to make water analysis reprot for borehole water,lake water, seawater.
· If soure water is tap water no need end to us TDS or water analysis report.
