Marine desalination system for vessel 625LPH–Somalia

The case introduction：

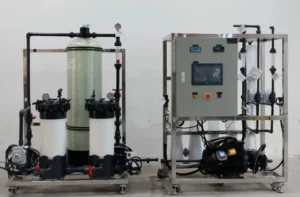

This is a marine desalination system treat 15m³ of water daily, installed on a ship for a Somali client. Due to the ship’s hatch size constraints, we split the pre-filter and Reverse Osmosis (RO) unit into two parts for easy lifting and installation in the confined ship’s hold. This unit excels in desalinating seawater with a TDS level below 45,000 PPM, producing water with a TDS of less than 600 PPM, perfect for drinking. It ensures the crew has access to fresh, potable water for daily needs, enhancing their overall well-being and operational autonomy.



Specifications Details:

HY-SWRO-625L/hr (15m3/D)
Flow rate	15000L/day	Recovery rate	35%
Applicable power	3PH/380V,50Hz	Rated power	6.6-8KW
Feedwater TDS	<35000ppm	freshwater TDS	300-500ppm
Working pressure	60 bar	operating temperature	5-45℃
Feedwater residual chlorine	<0.1ppm	Feedwater SDI	<5
Feedwater turbidity	<1NTU	Feedwater PH value	3-10 NTU
RO membrane housing	4040, 5 piece	RO membrane	5 pieces
Pre_filter size	118*88*165（㎝）	Net weight	480Kg
RO part size	110*75*165（㎝）	Gross weight	550Kg
Packing specification(Plywood)	197*133*175（㎝）

Marine desalination system function:

Providing Fresh Water: The core function of a marine desalination system on a boat is to generate fresh water from seawater. This fresh water is indispensable for the daily operations and living requirements of the crew, such as drinking, cooking, and cleaning.

Ensuring Water Purity and Safety: Additionally, the desalination process effectively removes salt, impurities, and potential contaminants from seawater. This ensures that the resultant water is safe for human consumption, safeguarding the health and well-being of the crew.

Enhancing Self-Sufficiency: Lastly, equipping boats or ships with a desalination plant allows them to achieve greater self-sufficiency in terms of water supply. This reduces dependency on external sources, enhancing the autonomy and operational flexibility of the vessel.

What is seawater desalination system?

A marine desalination system is a technological integration that removes salt and impurities from seawater through physical or chemical means, converting it into potable water or water suitable for industrial and agricultural use. Its core principle lies in the utilization of reverse osmosis membrane technology—under high pressure, seawater is forced through a semipermeable membrane, allowing only water molecules to pass through—which boasts low energy consumption and high efficiency.

Introduction Video:

Our equipment is available in a variety of sizes, ranging from 250L/hr upwards,

for larger sizes click this link:https://www.swroplant.com/case/seawater-desalination-reverse-osmosis-ro-system/

To watch more product videos, please click on our YT link:https://www.youtube.com/@Haiyuanwater

Marine desalination system for boat Inquiry Guides:
