Mobile ro system mobile water system 144m3PD for veiloa
1.Mobile ro system background production:
Veolia Water Technologies Australia, a subsidiary of the Veolia group and a leading water treatment specialist, serves as the buyer for this project. The end user, an Australian boiler manufacturer, requires a new boiler system that generates approximately 55,000 liters of water daily while necessitating an upgrade to their aging water treatment infrastructure. Given the factory’s spatial constraints, conventional indoor installation is infeasible; therefore, the entire treatment plant must be containerized and situated externally to minimize civil construction costs. To meet operational requirements, the system must process borehole water with maximum parameters of 4,000 μS/cm conductivity and 2,800 ppm TDS, ultimately producing boiler feed water that adheres to strict quality standards.
2.Mobile reverse osmosis system process:
Feed water storage tank → Booster water pump → Sand filter →Antiscalant dosing system → Cartridge filter → High pressure pump → RO system (CIP) → Product water storage tank
(The water storage tanks should be provided by customer)
3.Why choose mobile containerized reverse osmosis system?
This containerized water treatment solution offers exceptional versatility: not only is it engineered for rapid deployment to any location, but its all-in-one design ensures immediate operation with simple power and water connections. Designed to thrive in harsh environments and effectively treat contaminated water sources, it provides a cost-effective alternative to permanent installations while maintaining automated self-monitoring for consistent, reliable performance—making it ideal for emergency responses, remote operations, and rapid water supply solutions.
4.Mobile RO water treatment unit detailed parameter table:
| HY-RO-6T/hr container reverse osmosis | |||
| Flow rate | 144T/day | Recovery rate | 60% |
| Applicable power | 380V/50hz 3 phase | Rated power | 9.9KW |
| Feedwater TDS | 2800ppm | freshwater TDS | 31.6ppm |
| high pressure | 17.3bar | operating temperature | 5-45℃ |
| Feedwater residual chlorine | <0.1ppm | Feedwater SDI | <5 |
| Feedwater turbidity | <1NTU | Feedwater PH value | / |
| RO membrane housing | 8040*3 core 2pcs | RO membrane | 6pcs |
| Variable-frequency Drive | For each pump | Container | 20FT |
Design features:
-

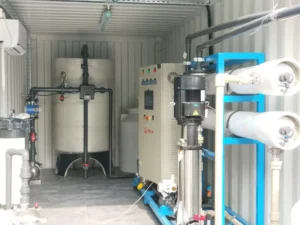

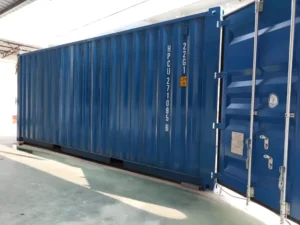

The entire system is compactly integrated into a new 20-foot container, which features built-in air conditioning and lighting to ensure operator comfort during both usage and equipment operation.
-
A variable speed drive (VSD) equips the high-pressure pump for optimized performance.
-
The electrical control system—comprising a Siemens PLC and 10″ Weinview HMI—enables fully automated operations with remote monitoring capabilities.
5.Mobile RO system inquiry guides：
To find the most suitable option for your use, please have the following information ready:
Product water flow rate (e.g., m³/hr, m³/day, L/hr, GPM, GPD, etc.)
Purpose of the product water (drinking, irrigation, industrial process, or others)
Feed water TDS (Total Dissolved Solids). Specify if it’s from a borehole, saltwater, brackish water, or lake water.
Power requirements (110V, 220V, 380V, 415V, 460V, 50 or 60 Hz), three-phase.
For borehole water, lake water, or seawater, a water analysis report is necessary.
If the source water is tap water, you don’t need to provide a TDS or water analysis report.
We are also good at produce the solar powered water treatment system.
Quickly discuss and reply you. My whatsapp +86 18825874379, Email: haiyuan@swroplant.com
