Seawater reverse osmosis desalination plants 60m3ph Water for concrete – Saudi Arabia
Seawater reverse osmosis project Introduction:

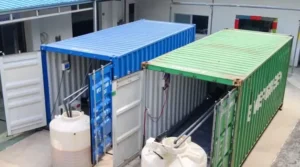

In relation to this project, it is a matter of great privilege for our company to collaborate with clients from Saudi Arabia. Initially, it is important to note that the raw water source for this endeavor is seawater, which the client directly extracts for processing. Furthermore, given that the Total Dissolved Solids (TDS) level of the raw seawater stands at 35,000ppm, and the client has specified a treated water output requirement of 60m³ per hour with a TDS of 500ppm, we have tailored our approach accordingly. Consequently, to optimize costs associated with land acquisition and construction, the treatment plant has been designed in a containerized format. Transitioning to the implementation details, we have efficiently installed the necessary equipment within two containers, ensuring compatibility with a voltage specification of 380V, 60Hz, 3ph, while maintaining a total power consumption of 111 KW.
Seawater reverse osmosis process flow:
Raw water tank – Raw water pump – Multi-media filter (backwash pump) – Anti-scaling and dosing – 5µ/1µ precision filter – High-pressure pump – RO (CIP) – Product water tank
Design highlights of the plant:
1.Equipped with multi-media filter, made of duplex steel;
2.Installed two precision filters: 5 microns, 1 microns;
3.RO membrane desalination rate: 99.8% (single tube)；
4.The electrical control system is fully automatic, running automatically, with PLC and HMI；
5.The container is equipped with air conditioning, non-slip and waterproof floor, and explosion-proof lights;
6.All pipes are made of duplex steel;
7.Containers provide a good operating environment for seawater desalination plant.
Detailed parameter table：
| HY-RO-60T/hr seawater reverse osmosis desalination | |||
| Flow rate | 1200T/day | Feed water | sea water |
| Applicable power | 380V/50hz 3 phase | Recovery rate | 45% |
| Feedwater TDS | 35000ppm | Rated power | 111KW |
| high pressure | 4.9bar | freshwater TDS | 201.9ppm |
| Feedwater residual chlorine | <0.1ppm | operating temperature | 5-45℃ |
| Feedwater turbidity | <1NTU | Feedwater SDI | <5 |
| RO membrane housing | 8040*6 core 6pcs | RO membrane | 36pcs |
| Variable-frequency Drive | For each pump | Container | 40FT |
Videos of similar plant:
Haiyuan serves every customer with sincerity:
Our company develops professional production plans according to customer requirements, produces equipment smoothly,
sends equipment pictures to customers before shipment and communicates with customers again for confirmation,
and finally packs the equipment for shipment. We are very grateful for the trust and support of our customers.
We will continue to improve the quality of our products, provide better services, and look forward to cooperating with more customers!
Our company also produces large-scale brackish water reverse osmosis system：
Seawater reverse osmosis desalination plants inquiry guides
To find the most suitable for your application, please provide us with the following information
– Product water flow rate (m3/h, m3/day, litres/h, GPM, GPD, etc.)
-Product water purpose (potable, irrigation, industrial process or other)
– TDS (total dissolved solids) of feed water – Is it well/salt/brackish/lake water?
– Power (/380V/440V/460V, 50 or 60 Hz) 3 phase.
– A well, lake or sea water analysis report is required.
– If the source water is tap water you do not need nalysisreport water.
