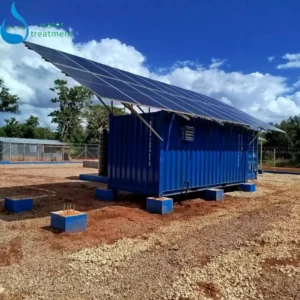

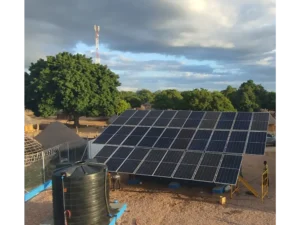

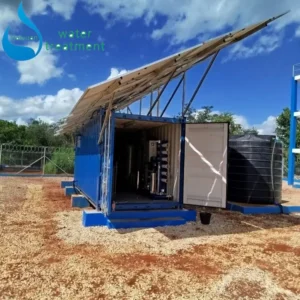

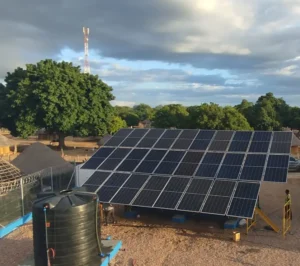

Solar containerized reverse osmosis system
Drinking Water Treatment System 3m3ph-Mozambique
Solar reverse osmosis Introduction:
This solar mobile containerized reverse osmosis water system was ordered by a customer from Mozambique, who hoped to solve the problem of insufficient drinking water through this equipment and provide clean living water for the local community;
We had in-depth discussions with the customer, hoping to give the customer a satisfactory and high-quality product to meet the customer’s needs. The customer was very satisfied with our equipment,whether it was quality, price, or service, so he trusted us and placed an order for 3 sets in total.
What does the Solar powered containerized reverse osmosis include?
Solar panels
New or second-hand (repaired, painted) container

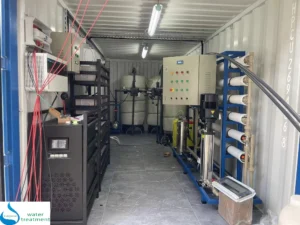

Water treatment system

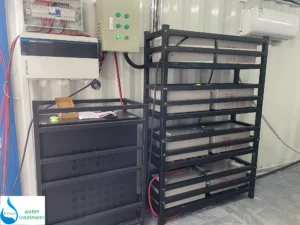

Control panel
Lighting
Interconnecting piping between components and systems
Instrument wiring and wiring inside the container to the main control cabinet accordingly
Non-slip floor covering
Air conditioning (optional)
Insulating whiteboard (optional)
Ventilation fans
1.Solar Containerized Reverse Osmosis System Parameters：
| HY-SCRO-3000L/hr (20m3/D) solar container reverse osmosis | |||
| Flow rate | 20m3/day | Recovery rate | 60% |
| Applicable power | 380V/50HZ 3 phase | Rated power | 7.5KW |
| Solar powered | 20KW | Inverter | 20KW (25KVA) |
| Solar panel | 20 pcs | Battery | 8PCS, 24KW |
| Incoming TDS | 2710ppm | output water TDS | 50ppm |
| Working pressure | 18 bar | operating temperature | 5-45℃ |
| Feedwater residual chlorine | <0.1ppm | Feedwater SDI | <5 |
| Feedwater turbidity | <1NTU | Feedwater PH value | 6.5-7 |
| RO membrane housing | 4040 x 2 cores 6pcs | RO membrane | 12piece |
| Variable-frequency Drive | For each pump | Container | 20FT |
2.Solar Containerized Reverse Osmosis System Product advantages:
Solar Powered Containerized reverse osmosis system have many advantages over built-in plant room installations:
- Plug and play unit
- Quick installation
- Limited civil work (only container foundation)
- Small foot print
- Easy transportation
- Mobile: useful for construction sites
- Turnkey delivery: piping, cables, air conditioning

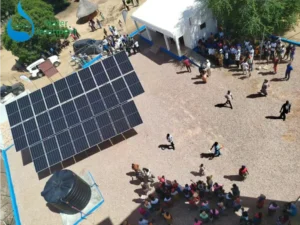

3.Solar powered containererized reverse osmosis deliver site handover ceremony on Mozambique.
4.Solar containerised reverse osmosis system inquiry guides：
