Solar containerized 100TPD ro reverse osmosis water treatment system
Solar containerized reverse osmosis water treatment system introduction
This is one solar containerized reverse osmosis ro treatment systems. Flow rate is 5 cubic meters per hour reverse osmosis water treatment system.
The project is located in Mahunzulucane, Mabote district, Inhambane p·rovince, Mozambique.
The feed water is from borehole with conductivity 2660µS/cm.According to customer preferences and requirements, the pumps use Grundfos brand.
After treated, the product water will meet the WHO drinking water standard which will supply as people’s domestic use in the community.
Solar containerized ro water treatment system Process
The treatment process is Booster water pump → Sand filter → Antiscalant dosing system → Cartridge filter → High pressure pump → Reverse Osmosis(RO) system → Product water delivery pump to water tower height 22m.

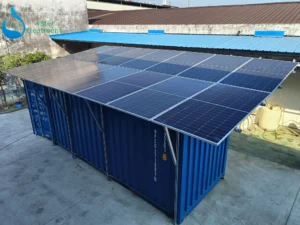

The entire reverse osmosis (RO) system is housed within a newly constructed 20-foot container, thoughtfully equipped with air conditioning, explosion-proof lighting, and rubberized flooring to ensure operator comfort and safety. To achieve energy independence and reliability, the system adopts a dual-power configuration: solar energy prioritized, with grid power serving as a seamless backup when solar irradiation is insufficient.
Video address:
Solar containerized 100TPD ro water treatment system Parameter
| Flow rate | 100m3/day | Recovery rate | 0.6 |
| Applicable power | 380V/50HZ 3 phase | Rated power | 7.7 KW |
| Solar powered | 7.7KW | Inverter | 20KW (25KVA) |
| Solar panel | 14 pcs | Battery | 8PCS, 24KW |
| Incoming TDS | < 1700ppm | output water TDS | <50ppm |
| Working pressure | 18 bar | operating temperature | 5-45℃ |
| Feedwater residual chlorine | <0.1ppm | Feedwater SDI | <5 |
| Feedwater turbidity | <1NTU | Feedwater PH value | 6.5-7 |
| RO membrane housing | 1 piece 8040 x 3 cores and 1 piece 8040 x 2 cores | RO membrane | 5 piece |
| Variable-frequency Drive | For each pump | Container | 20FT |
Solar containerised 100TPD ro reverse osmosis water treatment system Inquiry Guides
To find the most appropriate for your use, please advise the following information
Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
Product water purpose(drinking, irrigation, industry process or others)
Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
Power (/380V/440V/460V, 50 or 60 Hz) 3 phase.
It is necessary to make water analysis report for borehole water,lake water, seawater.
If soure water is tap water no need water analysis report.
