3000L/hr Solar powered containerized ro reverse osmosis water plant for drinking

This a solar powered containerized ro reverse osmosis plant tender project for Inhambane Province, Mozambique, which suitable to covert below 5 different boreholes of 5 communities ( TDS highest 2705.22mg/L) to be drinkable water :

(1)COMUNIDADE DE CHITANGA

(2)LOCALIDADE DE CHITANGA

(3)LOCALIDADE DECHICOMO

(4)LOCALIDADE DE LUIDO .SINGAREL 3

(5)LOCALIDADE DE LUÍDO

Each water treatment system treatment process is: Borehole water storage tank → Booster water pump → Sand filter → Iron removal filter → Activated carbon filter → Antiscalant dosing system → Cartridge filter → High pressure pump → Reverse Osmosis(RO) system → Chloride dosing unit → Product water storage tank (The water storage tanks should be provided by customer)

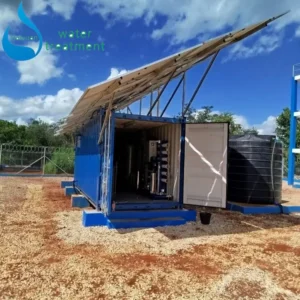

Each water treatment system is installed inside one 20 foot new container. The container equip with explosion-proof lights and rubber floor. Considering the hot weather and ventilation, the container also equip with air conditioning and ventilation fans.

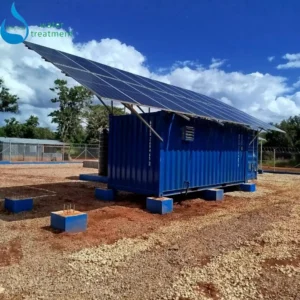

Each water treatment system and container will equip with one set solar system as the power supply. The solar system is consisted of 20PCS solar panels, 8PCS batteries, 20KW inverter output. Also electricity grid will be as spare power supply. The solar panels will be installed outside the container when actual use with customized supports.

solar containerised water treatment plant Video address:

Solar powered containerized reverse osmosis plant

see attached parameter.

HY-SCRO-3000L/hr Solar–Container Reverse osmosis plant
Flow rate	3000L/hr	Recovery rate	65%
Applicable power	380V/50HZ 3 phase	Rated power	7.5 KW
Solar powered	20KW	Inverter	20KW (25KVA)
Solar panel	20 pcs	Battery	8PCS, 24KW
Incoming TDS	< 2705ppm	output water TDS	<50ppm
Working pressure	18 bar	operating temperature	5-45℃
Feedwater residual chlorine	<0.1ppm	Feedwater SDI	<5
Feedwater turbidity	<1NTU	Feedwater PH value	6.5-7
RO membrane housing	4040-4 core 3 piece	RO membrane	12 piece
Variable-frequency Drive	For each pump	Container	20FT
