How Stainless Steel Reverse Osmosis RO System Produce Bottled Water?

How Stainless Steel Reverse Osmosis RO System Produce Bottled Water?

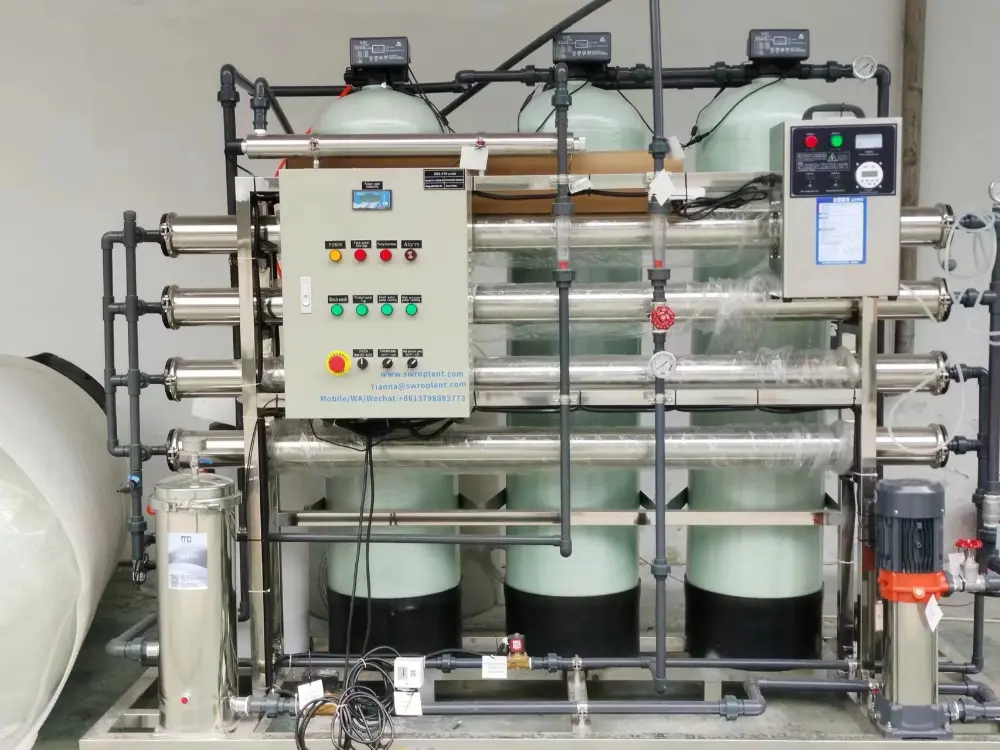

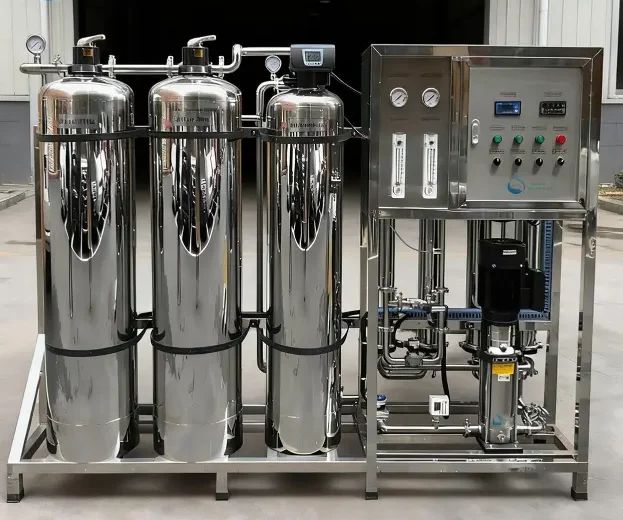

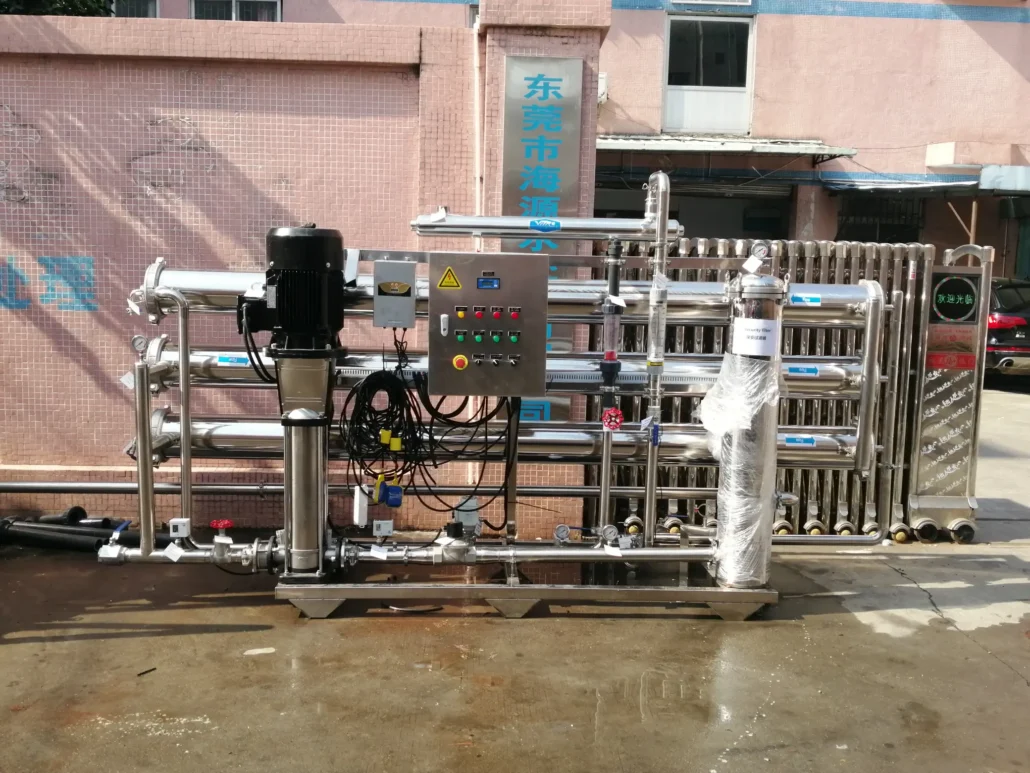

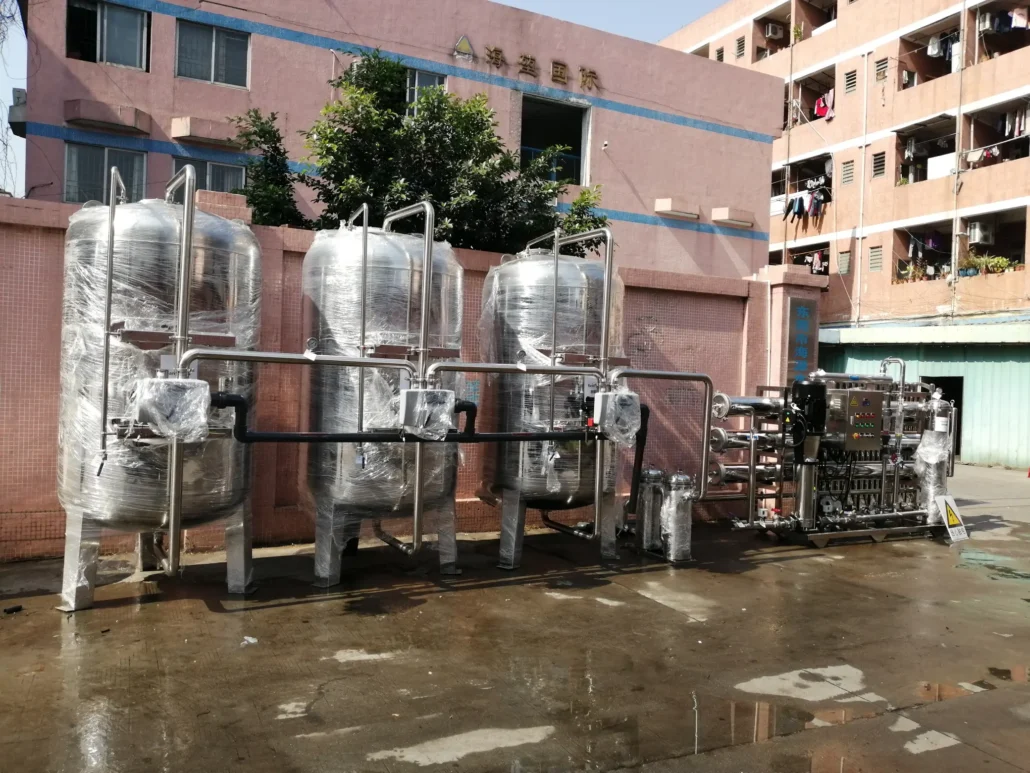

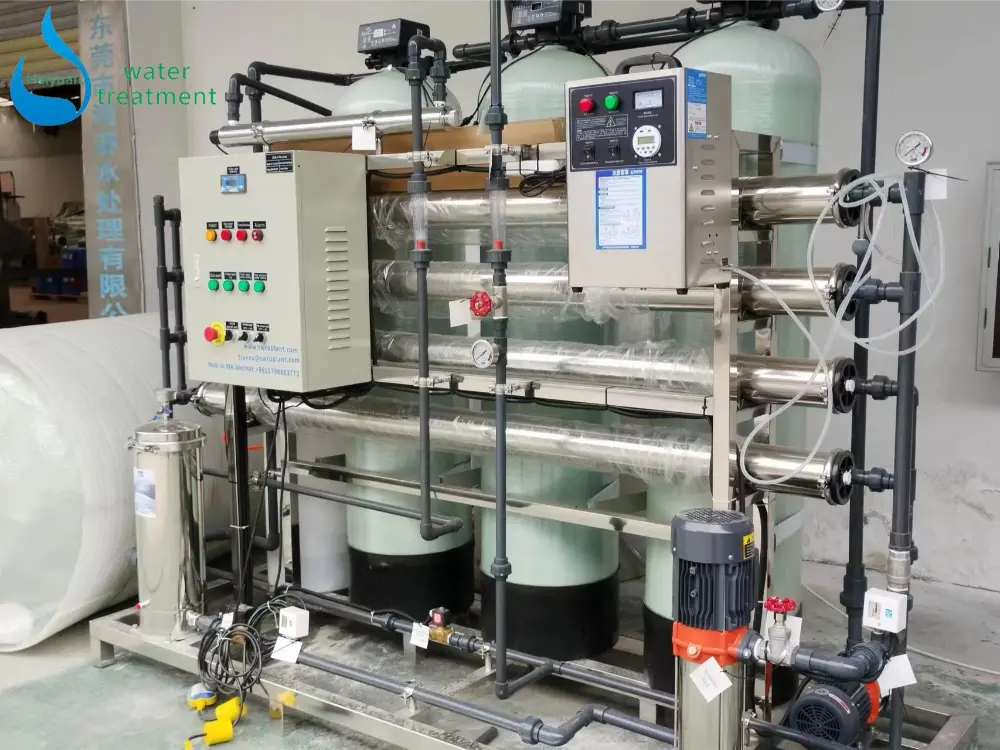

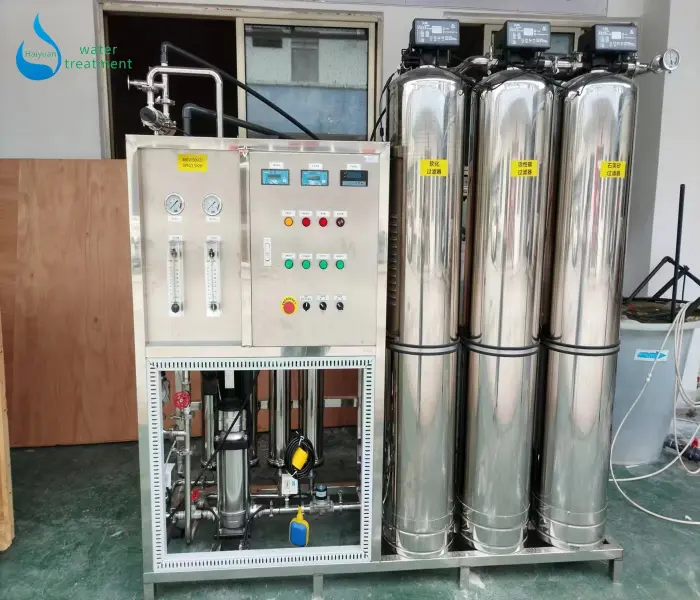

The Haiyuan Stainless Steel Reverse Osmosis (RO) Water System is a commercial water treatment machine for bottled water factories, beverage plants, hotels, and community water supply. The system is made of food-grade stainless steel, which is strong, safe, and long-lasting. It uses a high-pressure pump to push water through the RO membrane. The membrane has very small holes (0.0001 microns) that only let water pass. It can remove 99% of salts, bacteria, viruses, heavy metals, dirt, and bad taste. The result is clean, safe, and good-tasting drinking water.

What Types of Raw Water Can Be Treated?

The Haiyuan Stainless Steel RO System can treat a wide range of water sources, making it suitable for different customer needs:

  1. Groundwater / Well Water – Common in rural or industrial areas, often with high hardness.

  2. Tap / Municipal Water – Removes chlorine, impurities, and dissolved salts to improve water quality.

  3. River / Lake Water – With pre-treatment, removes suspended solids, organic matter, and microorganisms before RO purification.

  4. Sea / Brackish Water (with special RO membranes) – Used for desalination to produce drinking or industrial water.

  5. Rainwater / Collected Water – Can be filtered and purified to meet drinking water standards.

Stainless steel reverse osmosis system can be used to treat brackish water and seawater, but for seawater, SS316 stainless steel or a liner is recommended, along with a seawater-specific membrane and pretreatment system to ensure long-term stable operation.

In short: With proper pre-treatment, the Haiyuan RO system can treat almost any freshwater source and some low-salinity water sources for drinking or commercial use.

Haiyuan Stainless Steel RO System – Process Flow:

1. Raw Water Intake(recommend that customers purchase locally to save on transportation costs.)
Water is pumped from the source (well, tap, river, lake, or collected water) into the system.

2. Pre-Treatment

  • Sand Filter: Removes sand, silt, and suspended solids.

  • Activated Carbon Filter (optional): Removes chlorine, color, odor, and organic matter.

  • Water Softener (optional): Reduces hardness to protect RO membranes.

  • Cartridge Filter (5 micron): Final filtration before RO.

3. Reverse Osmosis (RO) Treatment
High-pressure pump pushes water through the RO membrane.

  • Removes 99% of dissolved salts (TDS), heavy metals, bacteria, viruses, organic impurities, and odors.

If your source water is seawater or brackish water, then you will need to use specialized SWRO and BWRO treatment methods respectively.

4. Post-Treatment

  • UV Sterilizer: Kills microorganisms.

  • Ozone Sterilizer (optional): Prevents bacterial growth in storage.

  • Mineral Adjustment (optional): Improves taste for drinking water.

5. Pure Water Storage(recommend that customers purchase locally to save on transportation costs.)
Treated water is stored in a stainless steel pure water tank ready for bottling or distribution.

6. Bottling / Commercial Use
Water is sent to automatic filling, capping, and labeling machines for:

  • Bottled drinking water

  • Barrel water

  • Beverage production

Besides bottled water, it can have many other uses, as long as the water quality TDS meets the standards.

Why use stainless steel? Can other materials be used?

Why Use Stainless Steel in RO Systems?

  1. Corrosion Resistance
    RO systems often contact water, chemicals, and disinfectants like chlorine or ozone. Carbon steel or iron can rust, while stainless steel resists corrosion, ensuring long equipment life.

  2. Hygiene and Safety
    Stainless steel is food-grade and does not release harmful substances, keeping drinking water safe.

  3. High Pressure and Durability
    RO systems operate under high pressure. Stainless steel can withstand it safely, ensuring stable operation.

  4. Easy to Clean and Sterilize
    Smooth stainless steel surfaces are easy to clean and disinfect, maintaining water quality.

  5. Aesthetic and Long-Lasting
    Stainless steel looks neat, is durable, and reduces maintenance costs, making it ideal for commercial and industrial use.

Stainless steel is not the only option. If your budget is limited or you want a more cost-effective solution, you can choose an FRP RO system, which is also corrosion-resistant and durable, suitable for lower-pressure applications or where water quality requirements are less strict.

Features of FRP

  1. Lightweight – Much lighter than stainless steel, easy to transport and install.

  2. Corrosion Resistant – Can resist water, acids, alkalis, and chemicals without rusting.

  3. Cost-Effective – Lower manufacturing cost than stainless steel, an economical choice.

  4. Highly Customizable – Can be molded into various shapes and sizes to fit different equipment designs.

  5. Maintenance Required – Surface is not as smooth as stainless steel; regular cleaning and maintenance are needed to ensure water quality.

Does it meet international drinking water standards?

Compliance with International Standards

  1. Total Dissolved Solids (TDS)

  • RO systems can reduce TDS to 5–50 ppm, well below the WHO recommended limit of 1000 ppm, providing fresh and great-tasting water.

  1. Microbiological Safety

  • Effectively removes bacteria, viruses, and microorganisms.

  • Combined with UV or ozone sterilization, the water is safe for drinking.

  1. Heavy Metals and Contaminants

  • RO membranes remove lead, cadmium, mercury, copper, and other harmful metals, as well as organic contaminants, meeting WHO and FDA limits.

  1. Taste and Clarity

  • The water is clear, odorless, and refreshing, suitable for bottled drinking water and beverage production.

Installation & After-Sales Service

Haiyuan provides comprehensive installation and after-sales support for our reverse osmosis (RO) systems, including:

  • Remote Installation Guidance: Professional engineers guide equipment installation online.

  • Operation Training: Customers can visit our factory for training to learn system operation and daily maintenance.

  • Solution Design & Technical Support: Customized solutions are provided according to customer requirements.

  • Spare Parts Supply: Genuine parts are available to ensure long-term stable operation.

  • One-Year After-Sales Service: Our professional team responds promptly to ensure reliable system performance.

To Purchase a Stainless Steel RO System for Bottled Water Production, Please Provide the Following Information:

To help us offer the best solution and accurate quotation, please provide:

  1. Source Water: Type of water,TDS and water quality report（well,tap,borehole,seawater or brackish?）

  2. Required Capacity: Daily or hourly production volume(1000L/hr to 50m3/hr)

  3. Voltage & Frequency: To ensure compatibility with your local power supply(380V / 50Hz / 3-phase, 220V / 50Hz / 1-phase, or 460V / 60Hz / 3-phase?)

  4. Usage: Will the water be used for anything other than drinking?

After receiving this information, our engineers will design the most suitable RO system for your needs and provide a professional quotation.

Haiyuan’s Stainless Steel RO System is a safe and durable solution for bottled water, beverage plants, hotels, and community water. It removes salts, bacteria, viruses, heavy metals, and odors, producing clean, great-tasting water. FRP or PVC options are available for budget or low-pressure needs.
