RO/Brackish Water Reverse Osmosis

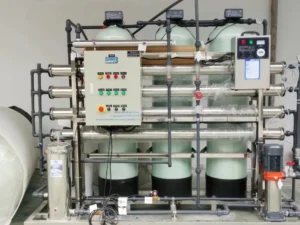

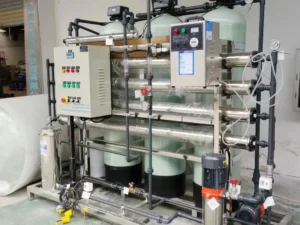

Well water treatment systems 2000LPH

Well water treatment systems 2000lph water filter for wellwater filtration system for Congo to drink

Product introduction:
This 2000L/H well water system achieves 99.37% TDS reduction (2000ppm→12.7ppm) through a compact multi-stage process: sediment removal via multi-media filter, organic purification with activated carbon, hardness correction, and dual UV+ozone sterilization. Operating at 50% recovery efficiency, it combines technical precision with customization options tailored to site-specific needs. Certified to global drinking water standards (WHO/NSF), Haiyuan delivers safe, compliant solutions optimized for residential and commercial applications.
Well water treatment systems process flow:
Raw water tank—boosting pump—multi-media filter—activated carbon filter—softening filter— cartridge filter—high pressure pump—RO—UV-ozone—product water tank
Product details table：
HY-SWRO-2000L/hr
Flow rate 2000L/hr Recovery rate 50%
Applicable power 380V/50hz 3phase Rated power 2.95KW
Feedwater TDS ≤35000ppm freshwater TDS <50ppm
Working pressure 60 bar operating temperature 5-45℃
Feedwater residual chlorine <0.1ppm Feedwater SDI <5
Feedwater turbidity <1NTU Feedwater PH value 3-10 NTU
RO membrane housing 4040*2 core,4pcs RO membrane 8 pieces
Equipment specification L2.5×W1.1×H2（m） Net weight /
Packing specification(Plywood) / Gross weight /

Product video Introduction:

If you want to learn more about the product video,

please click：https://www.youtube.com/channel/UCCU_f91qadTSmad4UFP1vBg

Well water treatment system Inquiry Guides:
To find the most appropriate system for your use, please ensure you have the following information ready.
·Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·Product water purpose(drinking, irrigation, industry process or others)
·Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
·Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
·It is necessary to make water analysis reprot for borehole water,lake water, seawater.
·If soure water is tap water no need end to us TDS or water analysis report.
Quickly discuss and reply you.
My whatsapp +86 18825874379    Email:haiyuan@swroplant.com
