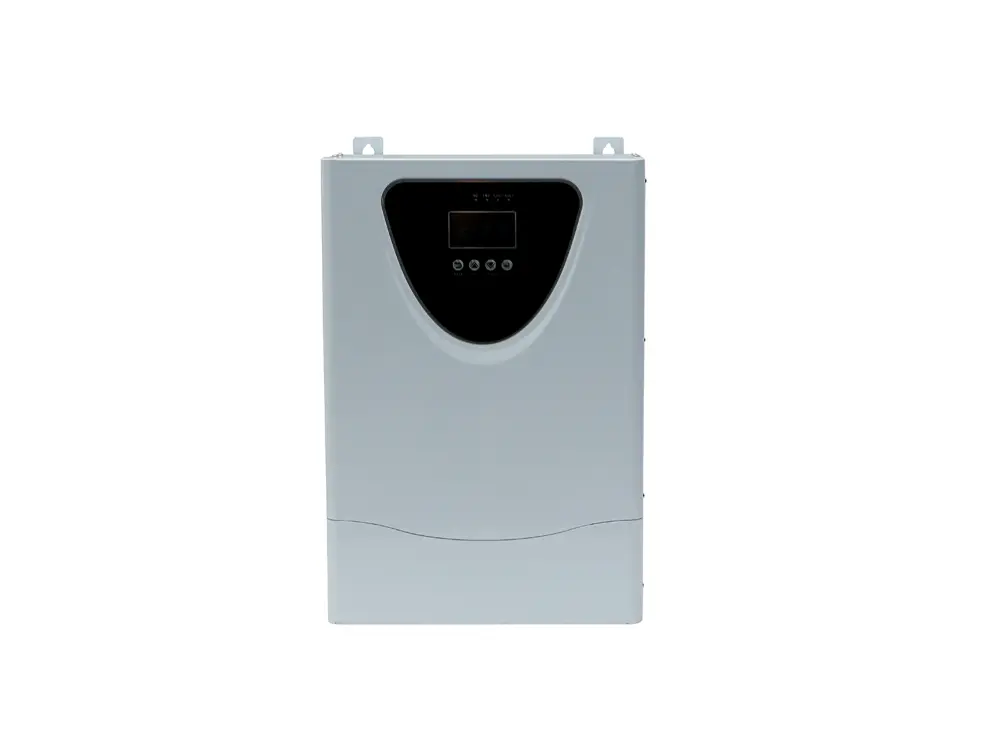

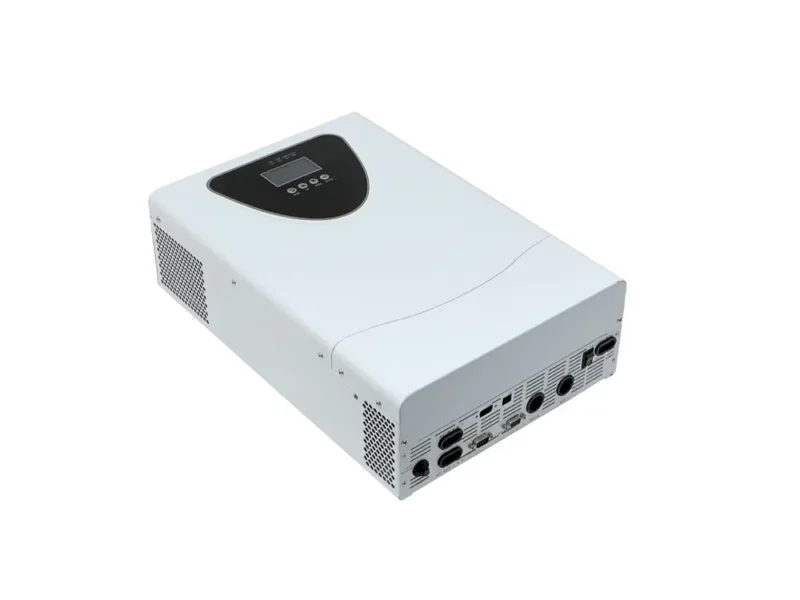

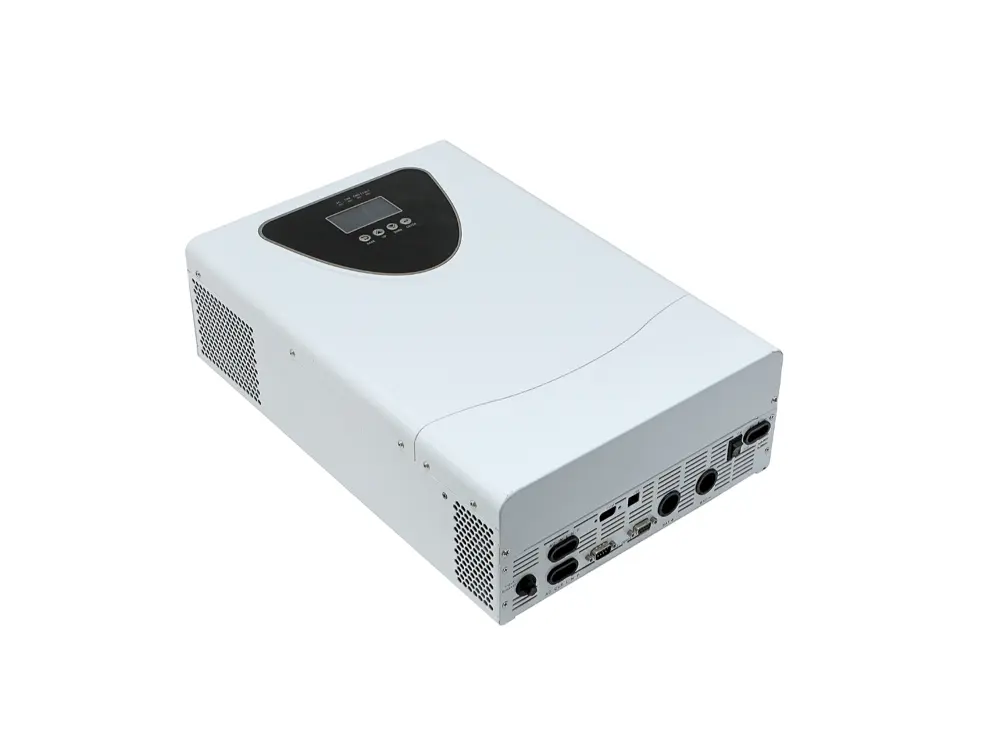

1000W Inverter-Controller Integrated Machine
1000W Inverter introduce:
1.Pure sine wave output: waveform distortion rate ≤3%, perfect for precision instruments and inductive loads
2.High-efficiency conversion: using the third-generation IGBT power module, the conversion efficiency exceeds 88%, 15% higher than traditional models
3.Global voltage compatibility: supports 90V-280V wide input (50/60Hz adaptive), covering 110V/220V dual-standard power grid
4.Constant current and voltage limiting (CC-CV) algorithm, charging current 5-30A adaptive (compatible with 12V/24V/48V battery pack)
5.Solar MPPT efficiency reaches 99.5%, supporting photovoltaic priority charging
✧ Cooling system innovation:
Intelligent temperature control fan (speed 0-3000RPM stepless adjustment)
Aviation-grade aluminum alloy heat sink fins, operating temperature range -20℃~+60℃
★ With perfect battery undervoltage, overload, AC All-round protection such as short-circuit protection function, safe and reliable
★Independent household photovoltaic power generation system, wind power generation system, wind-solar hybrid power generation system.
Solar water treatment equipment: suitable for water purification systems in remote areas, supports 24-hour stable power supply, anti-salt spray/moisture-proof design
[Differentiation advantage]
→ Passed CE/UL/IEC62109-1 certification, in line with grid connection standards
→ Modular design supports hot-swap maintenance, RS485/Modbus-TCP monitoring interface
Parameter Table：
| Power (W) | 1000W |
| Rated voltage | DC12V/24V |
| Charging current | 13.5V/27.5V(±2%) |
| Mains input range | 165-260VAC |
| Mains input frequency | 40-65Hz |
| Solar Controller Type | MPT |
| Solar input current | 30A-60A |
| Solar input voltage | 12V/24V (18-75VDC), 48V (60-180VDC) |
| Voltage range | 220VAC±5% (inverter mode) |
| Frequency | 50Hz/60Hz±1% (inverter mode) |
| Waveform Pure | sine wave |
| Conversion time | <10ms (typical load) |
| Conversion efficiency | >85% (80% resistive load) |
| Load | 110-120%/30S; >160%/300ms |
| Stable working environment | -20-55℃ |
| Storage environment temperature | -15 – 50℃ |
| Operation/storage environment | 0 -90% no frost |
| Product size (cm) | L*W*H 40.3*24.5*10.5 |
When designing a solar energy system, you need to determine the following system configuration information:
- Local annual average sunshine duration.
- Available space for installing solar panels.
- Total power of AC loads; load operating time, rainy day requirements.
- Backup time in hours.
