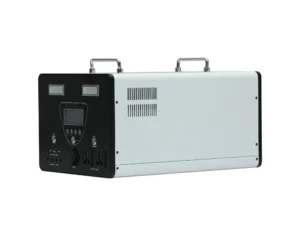

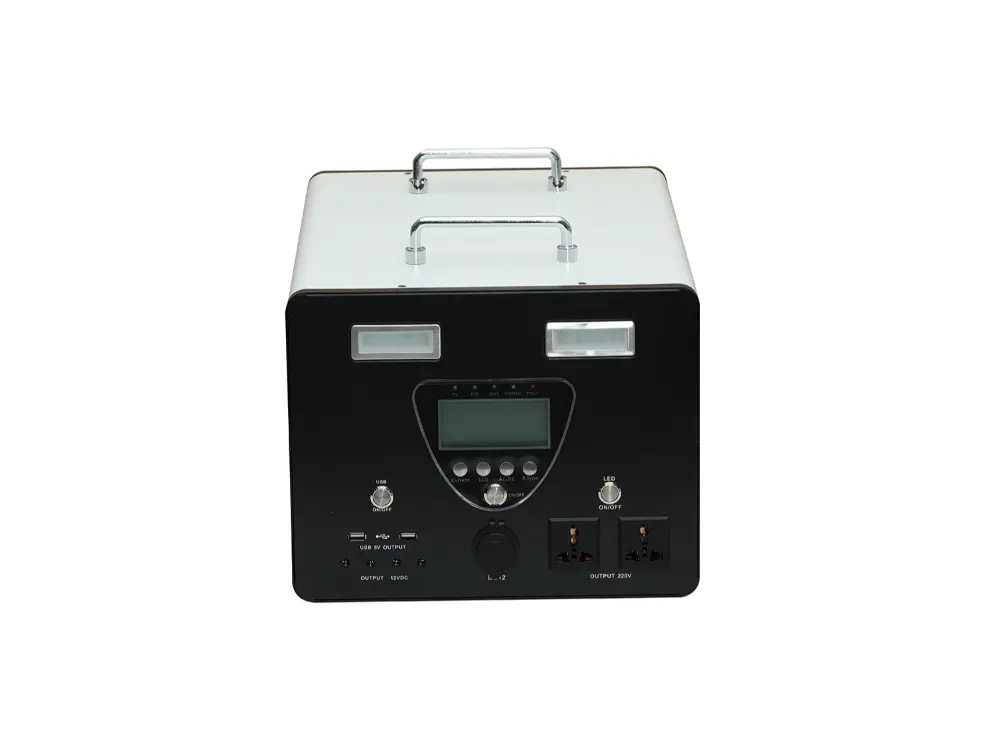

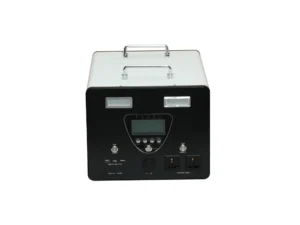

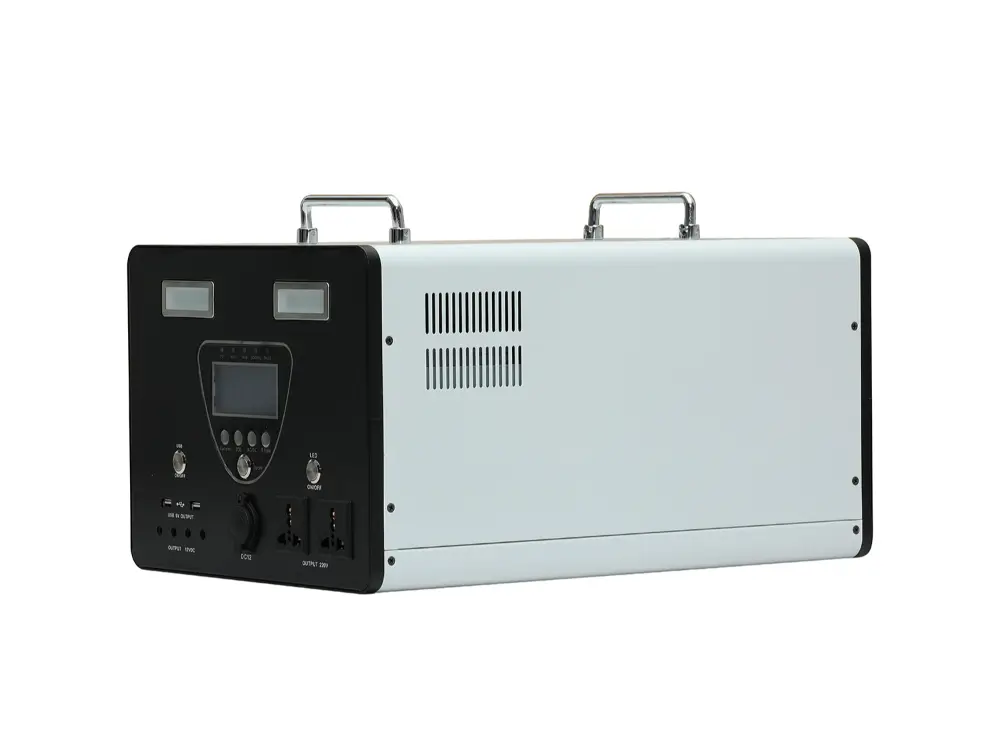

1500w Inverter-Controller Integrated Machine
1. Power output
Rated power 1500W: can stably drive household appliances and power tools such as rice cookers (800-1000W), electric kettles (1500-1800W), electric drills (500-1000W), washing machines (300-500W).
Peak power 3000W: to cope with short-term high-load requirements, such as the moment of motor starting.
Input voltage: supports DC 12V/24V/48V/110V input, suitable for a variety of power supply scenarios.
Output voltage and frequency: output standard AC power (such as 220V/50Hz or 110V/60Hz), compatible with household appliances.
Conversion efficiency: high-efficiency models reach 88%-90%, reducing energy waste.
2. Waveform output technology
Pure sine wave: waveform distortion ≤3%, strong compatibility, suitable for precision equipment (such as medical instruments, audio), to avoid equipment heating or abnormality.
Modified sine wave: low cost, but may cause slight interference to motor equipment (such as electric drills) or audio, suitable for ordinary household appliances.
3.1500w inverter highlights:
Adoption of Power Frequency Transformer Technology: High-quality waveform output with strong load adaptation ability, smaller no-load current, and better energy saving. Energy-saving mode machine loss is 5W.
Built-in AC 3-Stage Intelligent Charging Management Module: Automatically adjusts charging current (5A-30A) based on battery capacity and actual usage.
Comprehensive Protection: Battery undervoltage, overload, AC short circuit protection functions, and other comprehensive protection features ensure safety and reliability.
Parameter Table：
| Power (W) | 1500W |
| Rated voltage | DC12V/24V/48V |
| Charging current | 13.5V/27.5V/54V(±2%) |
| Mains input range | 165-260VAC |
| Mains input frequency | 40-65Hz |
| Solar Controller Type | MPT |
| Solar input current | 30A-60A |
| Solar input voltage | 12V/24V (18-75VDC), 48V (60-180VDC) |
| Voltage range | 220VAC±5% (inverter mode) |
| Frequency | 50Hz/60Hz±1% (inverter mode) |
| Waveform Pure | sine wave |
| Conversion time | <10ms (typical load) |
| Conversion efficiency | >85% (80% resistive load) |
| Load | 110-120%/30S; >160%/300ms |
| Stable working environment | -20-55℃ |
| Storage environment temperature | -15 – 50℃ |
| Operation/storage environment | 0 -90% no frost |
| Product size (cm) | L*W*H 40.3*24.5*10.5 |
When designing a solar energy system, you need to determine the following system configuration information:
- Local annual average sunshine duration.
- Available space for installing solar panels.
- Total power of AC loads; load operating time, rainy day requirements.
- Backup time in hours.
