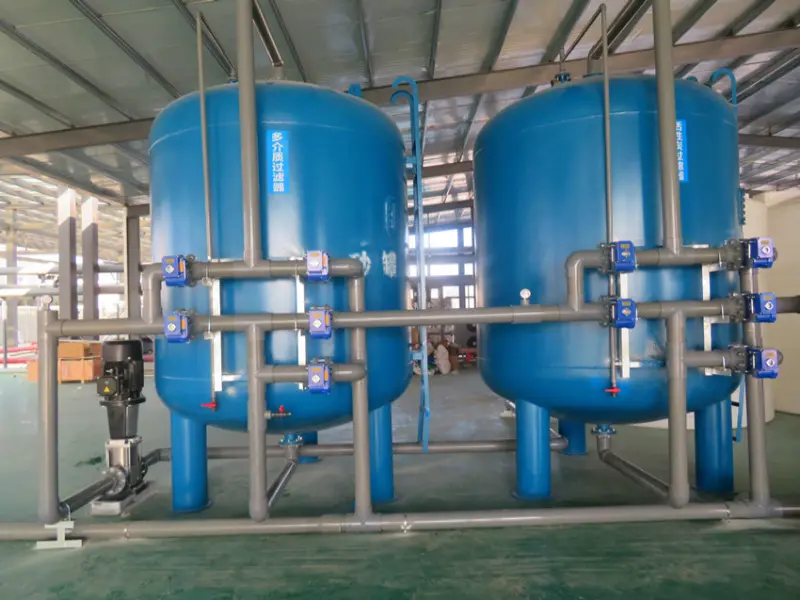

Well water iron manganese removal filtration system
Common Processes for Iron and Manganese Removal in Well Water Treatment
- Oxidation and Filtration:Process: Iron and manganese are oxidized using chemicals like chlorine or potassium permanganate, converting them into insoluble particles, which are then filtered out using a media filter.

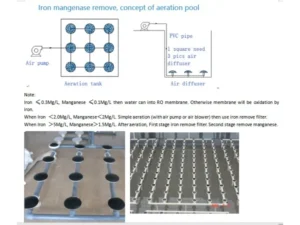

- Aeration:Process: Air is introduced into the water to oxidize iron and manganese, causing them to precipitate out as solid particles, which are subsequently removed by filtration.
- Ion Exchange:Process: Water passes through a resin bed where iron and manganese ions are exchanged with sodium or hydrogen ions, effectively removing them from the water.
- Greensand Filtration:Process: Water is passed through a greensand filter, which is coated with manganese dioxide. This media oxidizes and filters out both iron and manganese from the water.
- Biological Filtration:Process: Naturally occurring bacteria are used to oxidize and precipitate iron and manganese, which are then filtered out. This method is eco-friendly and sustainable.
- pre-filter+RO system for drinking water.

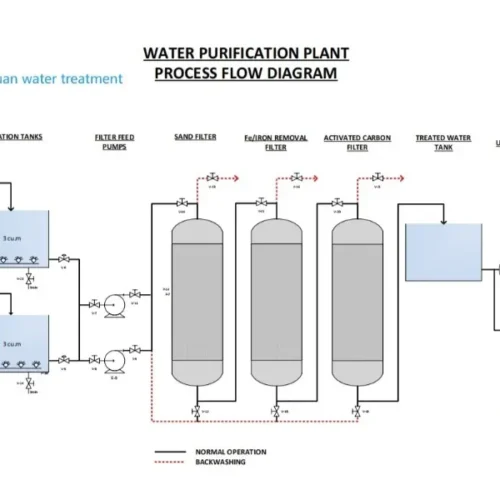

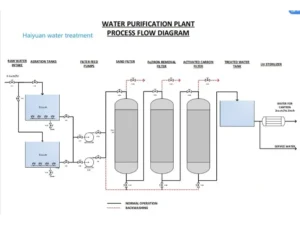

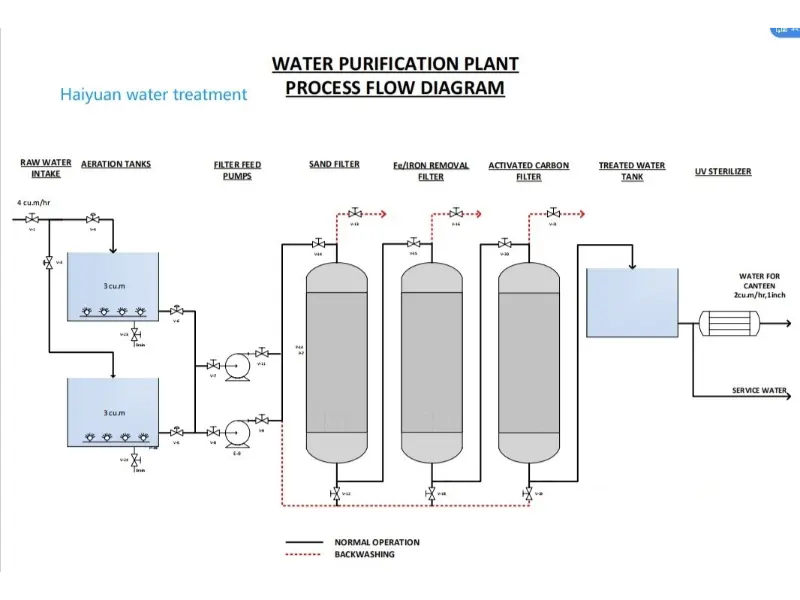

Aeration device→ Raw water tank → Feed water pump→ Sand filter→Iron removal filter→ Activated carbon filter→ Cartridge filter→ Product water tank ( Ultrafiltration or RO process for option)
C. Custom iron manganese remove system process show:
Inquiry Guides
To find the most appropriate for your use, please advise the following information ready
· Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·Product water purpose(drinking, irrigation, industry process or others)
· Feed Water Iron manganese value, TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
· It is necessary to make water analysis reprot for borehole water,lake water, seawater.
· If soure water is tap water no need water analysis report.
