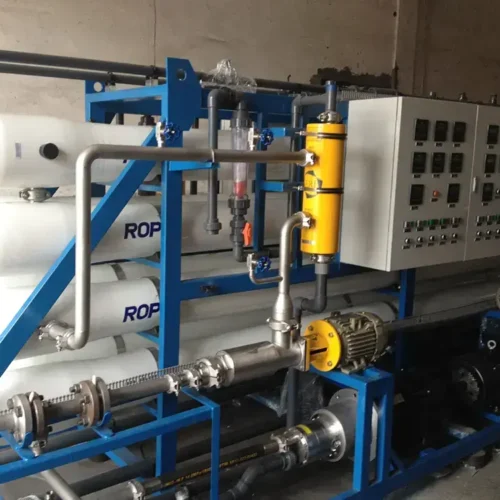

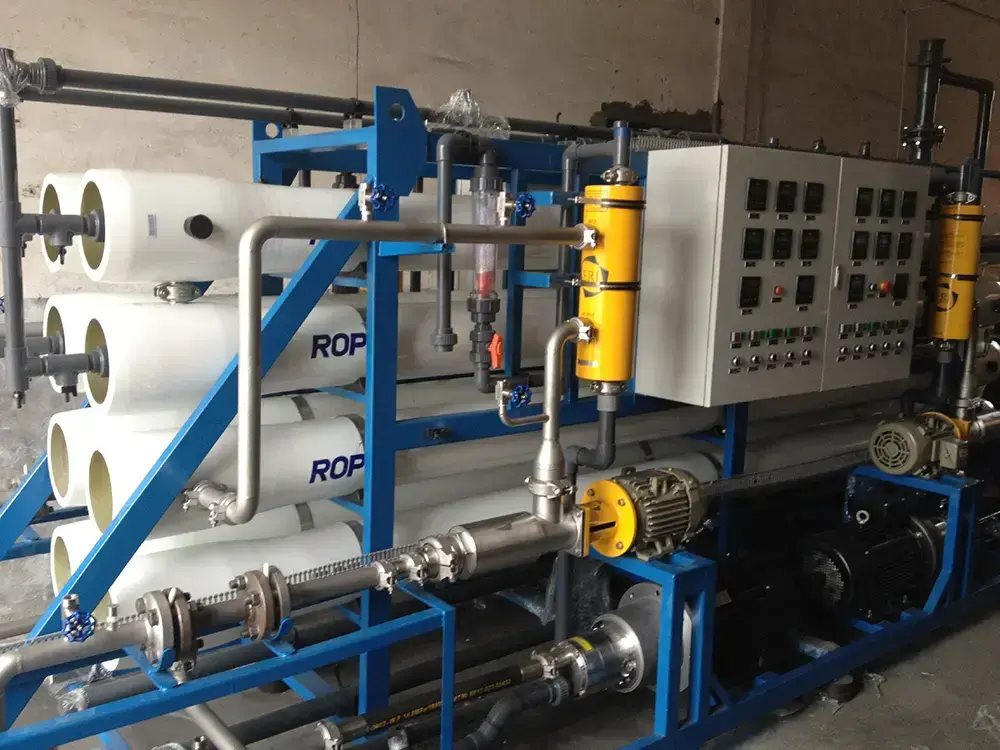

Salt water southern seawater desalination plant

Salt water southern seawater desalination plant designed by HY factory convert seawater into potable water with several key features. They are constructed with durable SS316 frames and stainless steel swivel casters, ensuring both durability and ease of movement. The use of hoses reduces vibration and noise levels. Efficient filtration is achieved with 5-micron and 1-micron filter elements, protecting the high-pressure pump from impurities. Stainless steel adjustable feet provide stability on uneven ground. The system includes low and full water level switches in the source and fresh water tanks, and alarm reminders for system notifications. These plants ensure reliable and efficient production of clean water.

Send Inquiry

Description

Salt water southern seawater desalination plant

Salt water desalination plant feature:

1. Salt water desalination plants made of SS316 frame, beautiful appearance, durable in use.

2. Water desalination plants made of stainless steel Swivel caster, durable in use, easy to more device.

3. Seawater desalination plant to use hose which could reduce vibration and lower noise.

4. Seawater desalination plants consist of 5micron fold filter element and 1 micron filter. It will intercept the more than absolutely 5 micron impurities. To avoid them into High pressure pump cause the pump be damaged.

5. Water desalination plants use stainless steel adjusting feet, whether the ground is flat, the equipment can be placed upright, easy to use.

6. Seawater desalination plants Low and full water level switch in the source tank and fresh water tank.

7. Water desalination plants Alarm reminding.

Salt water desalination plant paremeter:

HY-SWRO-10000LPD
Flow rate	10000L/D=500L/hr	Recovery rate	20%
Applicable power	380V/50HZ 3 phase	Rated power	4.75KW
Feedwater TDS	<45000ppm	Freshwater TDS	<600ppm
Working pressure	<6Mpa	Operating temperature	5-45℃
Feedwater residual chlorine	<0.1ppm	Feedwater SDI	<5
Feedwater turbidity	<1NTU	Feedwater PH value	3-10
Equipment specification	1.2X1.2X1.65(m)	Net weight	240Kg
Packing specification(Plywood)	1.3X1.3X1.75(cm)	Gross weight	300Kg

Why choose our salt water desalination plant?

1.Haiyuan have more than 15 years experience in water treatment industry.
2. We have brand “JISHUI”. Quality and service are our culture.
3. Produce all water water treatment system according to the ISO9001 quality standards and SGS standard.
4. Professional manufacturing engineers and Professional.
5. Direct manufacturers, offer the best price.
6. OEM&ODM available.
7. The punctual delivery of goods, quality and quantity guaranteed.
8. Have obtained many patents certification from government.

Salt water desalination plant

Our water machine adopts the reverse osmosis separation technology for seawater desalination. This technology is internationally recognized as the and effective desalination technology. Dilution principle mainly rely on reverse osmosis membrane under certain pressure to push the solvent and solute separated, this is its operating characteristics. So as to achieve the purpose of desalination. Reverse osmosis desalination process does not need to heat the seawater that is only operating at normal temperature. So it is very easy and simple operation. However, low energy consumption, low cost of water, so that the production will to be easily maintainable and modularization.

we need below information so that we can make the correct design proposal.

1. The source water from direct seawater or drilled a hole.

2. How many liter water per hour or per day?(GPD, m3)

3. Power is 380V/50hz or 60hz or others?

4. User need any Europe/USA brand or accept equal quality Chinese brand?

5. Any other detail requirement let us know.

We have 500L/hr,1000L/hr, 10m3/hr to 100m3/hr salt water desalination plant The capacity of seawater desalination plant is customized.

Except Sea water desalination plant there are more seawater desalination plant for boat for your reference.

Or send Email: Tianna@swroplant.com
