0.25m³/h Trailer-Mounted Diesel-Driven Seawater Desalination System | Mobile Off-Grid Drinking Water PlantMobile Drinking-water Solution for Off-grid Sites
Tags: Seawater Desalination, Diesel Power Supply, Trailer-integrated, Plug-and-Produce, 250L/H
Product Overview

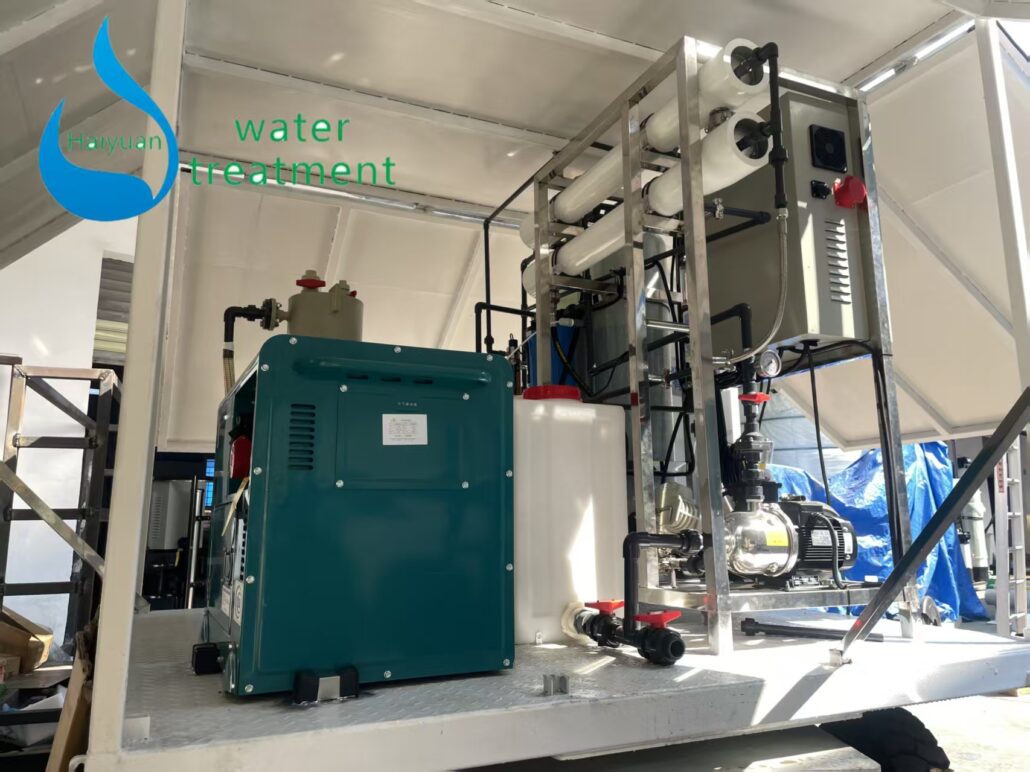

This is an integrated trailermounted reverse osmosis seawater desalination system. It converts seawater with TDS up to 35000 ppm into safe drinking water. Equipped with a built-in diesel generator set, the whole unit requires no municipal power supply or external water source. Drinking-quality water can be produced right after arrival on site. It is widely used for islands, remote field camps, emergency relief and other off-grid projects.
The complete process includes multistage pretreatment, RO desalination and UV disinfection to guarantee stable drinking-water quality.
Key Features

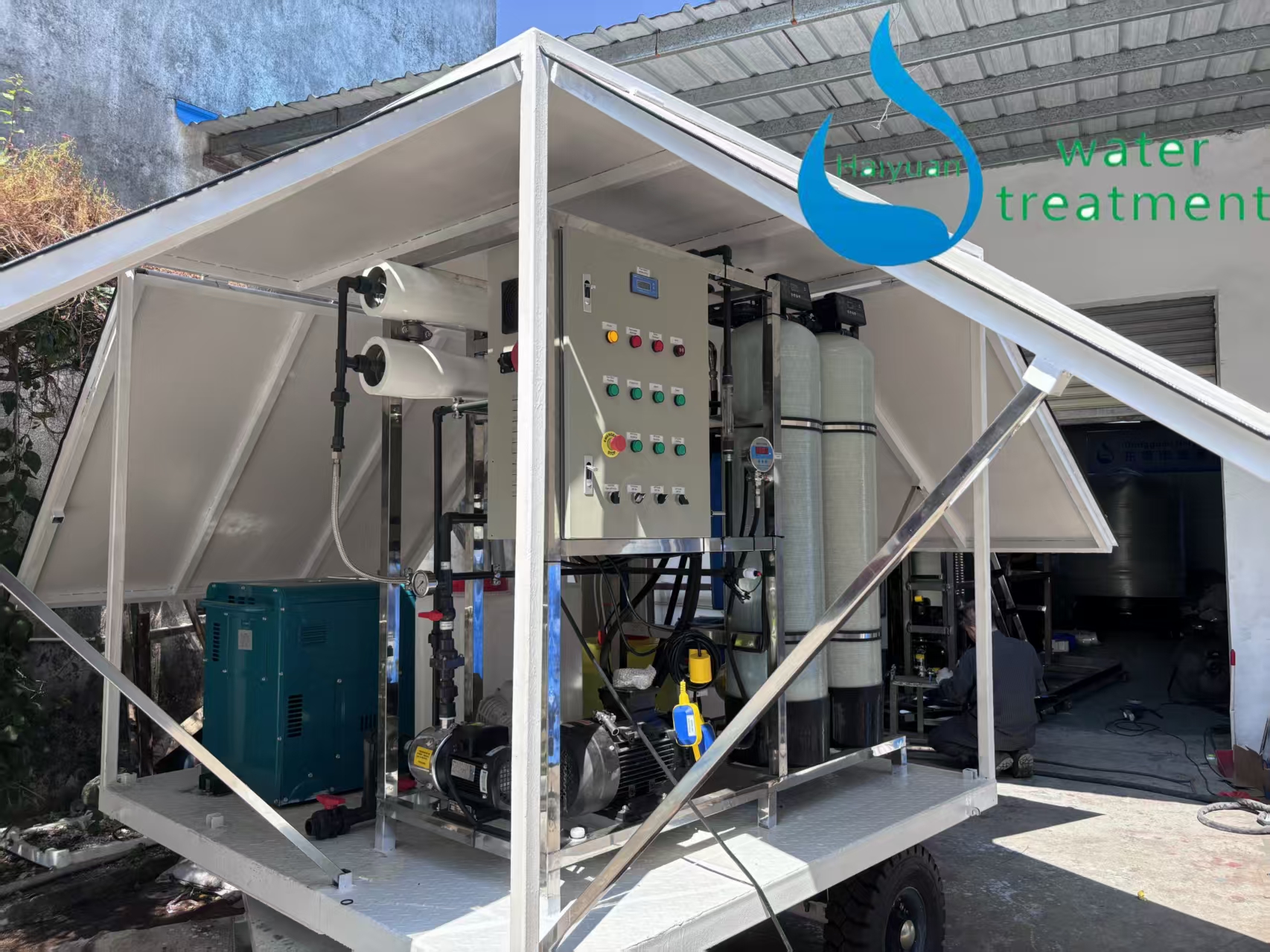

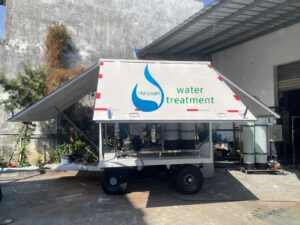

- Trailer-integrated for fast relocation & deploymentMounted on a 2-ton flat-bed trailer with shock absorbers, brakes and support outriggers. Easy for land transportation. Only seawater intake piping connection is required to start water production, acting as a mobile water-supply station.
- Silent diesel power supply, 100% off-grid capableFitted with a 5kW diesel generator with soundproof canopy. Noise level is below 75dB at 7-meter distance. The system supplies full power for the desalination unit in areas without grid access.
- Highrejection seawater RO membranesAdopt Vontron SW4040LE seawater-specific RO membranes. Singleelement salt rejection reaches 99.7%, specially designed for high-salinity seawater of 35000 ppm.

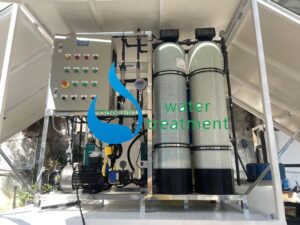

- Complete multi-stage pretreatment protects RO membranesMedia filter, activated carbon filter, antiscalant dosing, 5μm & 1μm cartridge filters remove suspended solids, colloids and organics from seawater, lowering membrane fouling risk and extending membrane service life.
- Corrosion-resistant material for harsh seawater environmentCritical wetted pump parts: SS316L. Main frame: SS304. Piping is graded by pressure: UPVC for low-pressure lines, SS316 for high-pressure lines to resist seawater corrosion.
- CIP cleaning system & UV disinfectionBuilt-in CIP cleaning unit enables online membrane performance recovery. Terminal 254 nm UV sterilizer eliminates microbes for safe drinking water. Both manual and automatic operation modes are available for simple operation.
Process Flow
Raw seawater → Feed water pump → Multi-media filter → Activated carbon filter → Antiscalant dosing → 5μm cartridge filter → 1μm cartridge filter → High-pressure pump → RO system (with CIP) → UV sterilizer → Product water tank → Drinking water
Main Technical Specifications
| Item | Parameters |
| Water production capacity | 250 L/h (approx. 6 m³/day) |
| Raw water | Seawater, TDS 35000 ppm |
| Product water | Drinking-quality, TDS ~233 ppm |
| Single membrane salt rejection | 99.7% |
| System recovery rate | 26% |
| Design temperature | 25℃ |
| Power requirement | 380V/50Hz 3-phase, compatible with 220V/50Hz |
| Total installed power | Approx. 2.75 kW |
| Power unit | 5kW silent diesel generator, Noise＜75dB@7m |
| Highpressure pump | HPP20LPM, SS316L, 2.2 kW with VFD |
| RO membranes | Vontron SW4040LE 4040 seawater membrane ×2 pcs |
| Pretreatment | Multimedia filter + activated carbon filter + antiscalant dosing + 5μm /1μm cartridge filters |
| Sterilization | 254 nm UV sterilizer, 14W |
| Cleaning system | CIP online chemical cleaning set |
| Material | Frame SS304; key pumps SS316L; lowpressure pipe UPVC; highpressure pipe SS316 |
| Trailer | 2-ton flat-bed trailer with shock absorber, brake & outriggers |
| Overall dimension | L3m × W2m × H2.4m |
| Shipping container | 40HQ ， can load 3 sets. |
Typical Applications
‑Fresh‑water supply for remote islands
‑Emergency water supply for disaster relief
‑Field construction & exploration camps
‑Off‑shore platforms and coastal temporary settlements
‑Mobile drinking‑water guarantee for field operations
